A swapchain image implementation for desktop platforms using GLFW. More...

#include <headers/evan/glfw/DesktopSwapchainImage.hpp>

Inheritance diagram for evan::DesktopSwapchainImage:

[legend]

Collaboration diagram for evan::DesktopSwapchainImage:

[legend]

Public Member Functions
	DesktopSwapchainImage (const DeviceContext &deviceContext, GLFWwindow *window, VkRenderPass renderpass, VkSwapchainKHR oldSwapchain=VK_NULL_HANDLE)
	Constructs a DesktopSwapchainImage instance for a given device context, GLFW window, and render pass.

void	destroy (VkDevice device) override
	Destroys the swapchain image and releases associated resources.

void	fillPresentInfo (VkPresentInfoKHR &presentInfo) const override
	Fills the VkPresentInfoKHR structure with the necessary information for presenting the swapchain image.

Public Member Functions inherited from evan::ASwapchainImage
VkFramebuffer	getFramebuffer (uint32_t index) const
	Retrieves the Vulkan framebuffer associated with the swapchain image at the specified index.

VkExtent2D	getExtent () const
	Retrieves the extent (width and height) of the swapchain images.

uint32_t	getFramebufferCount () const
	Retrieves the number of framebuffers associated with the swapchain images.

Public Attributes
VkSwapchainKHR	_swapchain = VK_NULL_HANDLE

Additional Inherited Members
Static Public Member Functions inherited from evan::ASwapchainImage
static VkFormat	findDepthFormat (VkPhysicalDevice physicalDevice)
	Finds a supported depth format for the swapchain context.

static VkFormat	findSupportedFormat (VkPhysicalDevice physicalDevice, const std::vector< VkFormat > &candidates, VkImageTiling tiling, VkFormatFeatureFlags features)
	Finds a supported format from a list of candidates based on the specified tiling and features.

Protected Member Functions inherited from evan::ASwapchainImage
void	createImageViews (const ADeviceBackend &deviceBackend)
	Creates image views for the swapchain images.

void	createColorResources (const ADeviceBackend &deviceBackend, VkSampleCountFlagBits msaaSamples)
	Creates a multisampled color attachment and its image view.

void	createDepthResources (const DeviceContext &deviceContext, VkSampleCountFlagBits msaaSamples)
	Creates depth resources for the swapchain images.

void	createFramebuffers (VkDevice logicalDevice, VkRenderPass renderPass, ColorAttachmentMode mode)
	Creates framebuffers for the swapchain images.

void	createImages (VkDevice logicalDevice, VkSwapchainKHR swapchain)
	Creates the Vulkan images for the swapchain.

Protected Attributes inherited from evan::ASwapchainImage
VkImage	_depthImage = VK_NULL_HANDLE

VkImageView	_depthView = VK_NULL_HANDLE

VkDeviceMemory	_depthMemory = VK_NULL_HANDLE

VkImage	_colorImage = VK_NULL_HANDLE

VkImageView	_colorView = VK_NULL_HANDLE

VkDeviceMemory	_colorMemory = VK_NULL_HANDLE

std::vector< VkImageView >	_imageViews

VkExtent2D	_extent = { 0, 0 }

VkFormat	_format = VK_FORMAT_UNDEFINED

uint32_t	_arrayLayers = 1
	The number of array layers of the swapchain and attachment images.

std::vector< VkImage >	_images

std::vector< VkFramebuffer >	_framebuffers

Detailed Description

A swapchain image implementation for desktop platforms using GLFW.

This class manages the creation and presentation of swapchain images for a GLFW window. It handles the selection of surface formats, present modes, and swap extents based on the capabilities of the physical device and the window properties.

The DesktopSwapchainImage class inherits from ASwapchainImage and implements the necessary functionality to create and manage a Vulkan swapchain for a desktop application. It provides methods to destroy the swapchain and fill presentation information for presenting images to the screen.

See also: ASwapchainImage

Definition at line 34 of file DesktopSwapchainImage.hpp.

Constructor & Destructor Documentation

◆ DesktopSwapchainImage()

evan::DesktopSwapchainImage::DesktopSwapchainImage	(	const DeviceContext &	deviceContext,
		GLFWwindow *	window,
		VkRenderPass	renderpass,
		VkSwapchainKHR	oldSwapchain = `VK_NULL_HANDLE`
	)

Constructs a DesktopSwapchainImage instance for a given device context, GLFW window, and render pass.

This constructor initializes the swapchain image by creating a Vulkan swapchain based on the provided device context, GLFW window, and render pass. It selects appropriate surface formats, present modes, and swap extents to ensure optimal performance and compatibility with the rendering pipeline.

Parameters

deviceContext	The device context containing the Vulkan device and related resources needed for swapchain creation.
window	The GLFW window for which the swapchain image is being created. The window properties are used to determine the swap extent and other parameters for the swapchain.
renderpass	The Vulkan render pass that will be used with the swapchain images during rendering operations. The render pass defines the attachments and subpasses that will be used when rendering to the swapchain images.
oldSwapchain	The previous swapchain to retire when recreating, or VK_NULL_HANDLE for the initial creation.

Note

The constructor performs several steps to create the swapchain, including:

Querying the physical device for swapchain support details.
Choosing appropriate surface formats, present modes, and swap extents based on the capabilities of the physical device and the properties of the GLFW window.
Creating the Vulkan swapchain and associated image views for rendering.
Storing the swapchain handle for later use in presentation and cleanup operations.

Definition at line 17 of file DesktopSwapchainImage.cpp.

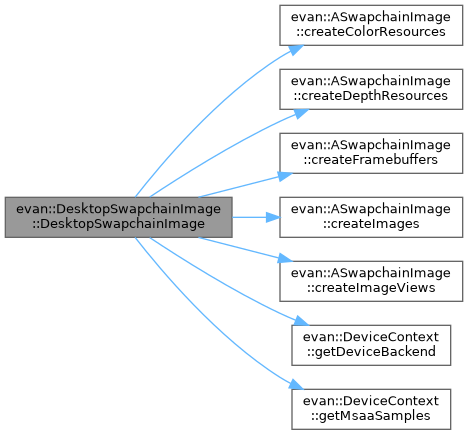

Here is the call graph for this function:

◆ ~DesktopSwapchainImage()

evan::DesktopSwapchainImage::~DesktopSwapchainImage ( )

Definition at line 139 of file DesktopSwapchainImage.cpp.

Member Function Documentation

◆ destroy()

void evan::DesktopSwapchainImage::destroy ( VkDevice device )

overridevirtual

Destroys the swapchain image and releases associated resources.

This function overrides the pure virtual destroy method from ASwapchainImage to handle the specific logic for destroying the Vulkan swapchain and releasing any resources associated with it. It takes a Vulkan device as a parameter, which is used to perform the necessary cleanup operations for the swapchain.

Parameters

device The Vulkan device used to perform the cleanup operations for the swapchain image. This device is typically obtained from the device context and is used to destroy the swapchain and release associated resources.

Note: This function should ensure that all resources related to the swapchain image are properly released when the image is no longer needed, preventing memory leaks and ensuring efficient resource management in the rendering system.

Implements evan::ASwapchainImage.

Definition at line 149 of file DesktopSwapchainImage.cpp.

◆ fillPresentInfo()

void evan::DesktopSwapchainImage::fillPresentInfo ( VkPresentInfoKHR & presentInfo ) const

overridevirtual

Fills the VkPresentInfoKHR structure with the necessary information for presenting the swapchain image.

This function overrides the pure virtual fillPresentInfo method from ASwapchainImage to populate the VkPresentInfoKHR structure with the appropriate information required for presenting the swapchain image to the screen. It takes a reference to a VkPresentInfoKHR structure as a parameter, which should be filled with the necessary details such as the swapchain, image index, and synchronization primitives.

Parameters

presentInfo A reference to a VkPresentInfoKHR structure that should be filled with the necessary information for presenting the swapchain image. This structure is used by the rendering system to present rendered frames using the swapchain images, and it must be correctly populated to ensure proper presentation behavior.

Note: This function should handle the specific logic for filling the presentation information for swapchain images in the context of the rendering system, ensuring that all required fields in the VkPresentInfoKHR structure are correctly set based on the swapchain and rendering pipeline configuration.

Implements evan::ASwapchainImage.

Definition at line 225 of file DesktopSwapchainImage.cpp.

Member Data Documentation

◆ _swapchain

VkSwapchainKHR evan::DesktopSwapchainImage::_swapchain = VK_NULL_HANDLE

The Vulkan swapchain associated with this swapchain image. The swapchain is created during the initialization of the DesktopSwapchainImage instance and is used for presenting rendered images to the screen. It is important to properly manage the lifecycle of the swapchain, ensuring that it is destroyed when no longer needed to release associated resources.

Definition at line 131 of file DesktopSwapchainImage.hpp.

The documentation for this class was generated from the following files:

headers/evan/glfw/DesktopSwapchainImage.hpp
sources/glfw/DesktopSwapchainImage.cpp
