Represents an RGBA color with floating-point channels in [0, 1]. More...

#include <color.hpp>

Classes
struct	RGBA8
	8-bit RGBA packed representation. More...

Public Member Functions
	Color (void)
	Construct a fully-opaque black color (0,0,0,1).

	Color (float r, float g, float b)
	Construct from RGB, alpha defaults to 1.0.

	Color (float r, float g, float b, float a)
	Construct from RGBA.

float	r (void) const
	Red component in [0,1].

float	g (void) const
	Green component in [0,1].

float	b (void) const
	Blue component in [0,1].

float	a (void) const
	Alpha component in [0,1].

void	setR (float v)
	Setters (values are clamped to [0,1]).

void	setG (float v)
	Set green component.

void	setB (float v)
	Set blue component.

void	setA (float v)
	Set alpha component.

Color	withAlpha (float alpha) const
	Return a copy with a different alpha (keeps RGB).

Color	lerp (const Color &to, float t) const
	Linear interpolation between two colors (component-wise).

Color	premultiplied () const
	Premultiplied alpha representation.

Color	over (const Color &bg) const
	Alpha blend this color over a background color. Uses standard source-over compositing in linear space.

RGBA8	toRGBA8 () const
	Convert to 8-bit per channel RGBA.

std::string	toHex (bool includeAlphaIfOpaque=false) const
	Convert to hexadecimal string. Formats as "#RRGGBB" if a==1 else "#RRGGBBAA".

bool	operator== (const Color &other) const
	Equality operators (exact component-wise equality).

bool	operator!= (const Color &other) const
	Inequality operator.

Color	operator+ (const Color &o) const
	Component-wise addition (clamped).

Color	operator- (const Color &o) const
	Component-wise subtraction (clamped to [0,1]).

Color	operator* (float s) const
	Scalar multiplication (scales RGB; alpha unchanged by default).

Static Public Member Functions
static Color	fromRGBA8 (uint8_t r, uint8_t g, uint8_t b, uint8_t a=255)
	Create from 8-bit per channel RGBA values.

static Color	fromHex (const std::string &hex)
	Parse from hexadecimal string.

static Color	Black ()
	Common named colors (opaque unless specified).

static Color	White ()
	Opaque white (1,1,1,1)

static Color	Red ()
	Opaque red (1,0,0,1)

static Color	Green ()
	Opaque green (0,1,0,1)

static Color	Blue ()
	Opaque blue (0,0,1,1)

static Color	Transparent ()
	Fully transparent black (0,0,0,0)

Detailed Description

Represents an RGBA color with floating-point channels in [0, 1].

The Color class stores red, green, blue, and alpha components as floats clamped to the [0,1] range. It provides convenient constructors, conversion utilities to and from 8-bit channel values and hexadecimal strings, as well as basic color operations.

Definition at line 42 of file color.hpp.

Constructor & Destructor Documentation

◆ Color() [1/3]

Color::Color ( void )

inline

Construct a fully-opaque black color (0,0,0,1).

Definition at line 57 of file color.hpp.

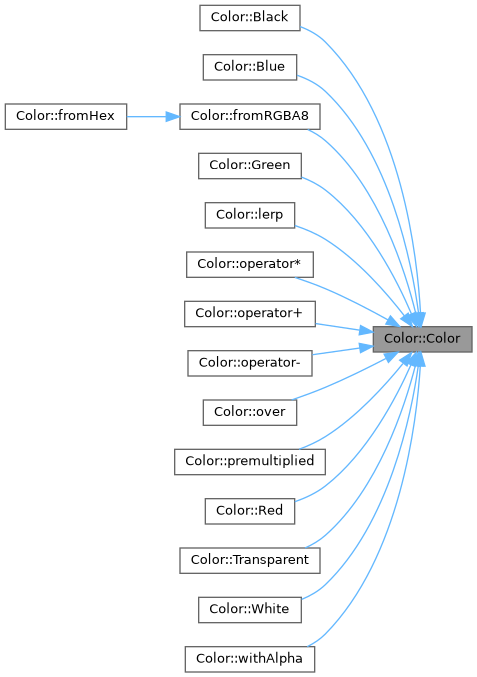

Here is the caller graph for this function:

◆ Color() [2/3]

Color::Color	(	float	r,
		float	g,
		float	b
	)

inline

Construct from RGB, alpha defaults to 1.0.

Definition at line 62 of file color.hpp.

◆ Color() [3/3]

Color::Color	(	float	r,
		float	g,
		float	b,
		float	a
	)

inline

Construct from RGBA.

Definition at line 68 of file color.hpp.

Member Function Documentation

◆ a()

float Color::a ( void ) const

inline

Alpha component in [0,1].

Definition at line 86 of file color.hpp.

Here is the caller graph for this function:

◆ b()

float Color::b ( void ) const

inline

Blue component in [0,1].

Definition at line 82 of file color.hpp.

Here is the caller graph for this function:

◆ Black()

static Color Color::Black ( )

inlinestatic

Common named colors (opaque unless specified).

Opaque black (0,0,0,1)

Definition at line 294 of file color.hpp.

Here is the call graph for this function:

◆ Blue()

static Color Color::Blue ( )

inlinestatic

Opaque blue (0,0,1,1)

Definition at line 302 of file color.hpp.

Here is the call graph for this function:

◆ fromHex()

static Color Color::fromHex ( const std::string & hex )

inlinestatic

Parse from hexadecimal string.

Accepts formats (leading '#' is optional):

RGB
RRGGBB
RGBA
RRGGBBAA

Throws std::invalid_argument on invalid format.

Definition at line 214 of file color.hpp.

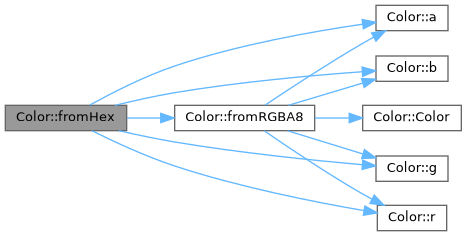

Here is the call graph for this function:

◆ fromRGBA8()

static Color Color::fromRGBA8	(	uint8_t	r,
		uint8_t	g,
		uint8_t	b,
		uint8_t	a = `255`
	)

inlinestatic

Create from 8-bit per channel RGBA values.

Definition at line 180 of file color.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ g()

float Color::g ( void ) const

inline

Green component in [0,1].

Definition at line 78 of file color.hpp.

Here is the caller graph for this function:

◆ Green()

static Color Color::Green ( )

inlinestatic

Opaque green (0,1,0,1)

Definition at line 300 of file color.hpp.

Here is the call graph for this function:

◆ lerp()

Color Color::lerp	(	const Color &	to,
		float	t
	)		const

inline

Linear interpolation between two colors (component-wise).

Parameters

to	Target color
t	Interpolation factor in [0,1]

Definition at line 122 of file color.hpp.

Here is the call graph for this function:

◆ operator!=()

bool Color::operator!= ( const Color & other ) const

inline

Inequality operator.

Returns: true if any component differs, false otherwise.

Definition at line 265 of file color.hpp.

◆ operator*()

Color Color::operator* ( float s ) const

inline

Scalar multiplication (scales RGB; alpha unchanged by default).

Definition at line 286 of file color.hpp.

Here is the call graph for this function:

◆ operator+()

Color Color::operator+ ( const Color & o ) const

inline

Component-wise addition (clamped).

Definition at line 270 of file color.hpp.

Here is the call graph for this function:

◆ operator-()

Color Color::operator- ( const Color & o ) const

inline

Component-wise subtraction (clamped to [0,1]).

Definition at line 278 of file color.hpp.

Here is the call graph for this function:

◆ operator==()

bool Color::operator== ( const Color & other ) const

inline

Equality operators (exact component-wise equality).

Definition at line 258 of file color.hpp.

◆ over()

Color Color::over ( const Color & bg ) const

inline

Alpha blend this color over a background color. Uses standard source-over compositing in linear space.

Definition at line 138 of file color.hpp.

Here is the call graph for this function:

◆ premultiplied()

Color Color::premultiplied ( ) const

inline

Premultiplied alpha representation.

Returns: Color where rgb are multiplied by alpha, alpha unchanged.

Definition at line 132 of file color.hpp.

Here is the call graph for this function:

◆ r()

float Color::r ( void ) const

inline

Red component in [0,1].

Definition at line 74 of file color.hpp.

Here is the caller graph for this function:

◆ Red()

static Color Color::Red ( )

inlinestatic

Opaque red (1,0,0,1)

Definition at line 298 of file color.hpp.

Here is the call graph for this function:

◆ setA()

void Color::setA ( float v )

inline

Set alpha component.

Parameters

v	Alpha value, clamped to [0,1]

Definition at line 110 of file color.hpp.

◆ setB()

void Color::setB ( float v )

inline

Set blue component.

Parameters

v	Blue value, clamped to [0,1]

Definition at line 105 of file color.hpp.

◆ setG()

void Color::setG ( float v )

inline

Set green component.

Parameters

v	Green value, clamped to [0,1]

Definition at line 100 of file color.hpp.

◆ setR()

void Color::setR ( float v )

inline

Setters (values are clamped to [0,1]).

Set red component.

Parameters

v	Red value, clamped to [0,1]

Definition at line 95 of file color.hpp.

◆ toHex()

std::string Color::toHex ( bool includeAlphaIfOpaque = false ) const

inline

Convert to hexadecimal string. Formats as "#RRGGBB" if a==1 else "#RRGGBBAA".

Definition at line 191 of file color.hpp.

Here is the call graph for this function:

◆ toRGBA8()

RGBA8 Color::toRGBA8 ( ) const

inline

Convert to 8-bit per channel RGBA.

Returns: An RGBA8 struct containing channels in 0..255.

Definition at line 169 of file color.hpp.

Here is the caller graph for this function:

◆ Transparent()

static Color Color::Transparent ( )

inlinestatic

Fully transparent black (0,0,0,0)

Definition at line 304 of file color.hpp.

Here is the call graph for this function:

◆ White()

static Color Color::White ( )

inlinestatic

Opaque white (1,1,1,1)

Definition at line 296 of file color.hpp.

Here is the call graph for this function:

◆ withAlpha()

Color Color::withAlpha ( float alpha ) const

inline

Return a copy with a different alpha (keeps RGB).

Definition at line 115 of file color.hpp.

Here is the call graph for this function:

The documentation for this class was generated from the following file:

/home/runner/work/guillaume/guillaume/headers/color.hpp
