utility::event::HandButtonEvent Class Reference

Hand button event. More...

#include <headers/utility/event/hand_button_event.hpp>

Inheritance diagram for utility::event::HandButtonEvent:

Collaboration diagram for utility::event::HandButtonEvent:

Classes
class	Factory
	Factory for creating HandButtonEvent instances. More...

Public Types
enum class	Button {   Unknown = 0 , X = 1 , Y = 2 , A = 3 ,   B = 4 , Menu = 5 , System = 6 }
	Hand button identifier. More...
Public Types inherited from utility::event::HandEvent
enum class	HandType { Unknown = 0 , Left = 1 , Right = 2 }
	Hand types for hand events. Defines the type of hand involved in the event (e.g., left or right). More...

Public Member Functions
	HandButtonEvent (void)
	Default constructor.
	~HandButtonEvent (void) override
	Default destructor.
HandButtonEvent &	setButton (const Button button) noexcept
	Set button value.
Button	getButton (void) const noexcept
	Get button value.
bool	isValidForCurrentHand (void) const noexcept
	Check whether current hand/button combination is valid.
HandButtonEvent &	setTouched (const bool touched) noexcept
	Set touched state.
bool	isTouched (void) const noexcept
	Get touched state.
HandButtonEvent &	setButtonPressed (const bool clicked) noexcept
	Set clicked state.
bool	isButtonPressed (void) const noexcept
	Get clicked state.
Public Member Functions inherited from utility::event::HandEvent
	HandEvent (void)
	Default constructor.
virtual	~HandEvent (void) override
	Default destructor.
HandEvent &	setHandType (const HandType handType) noexcept
	Set the type of hand involved in the event.
HandType	getHandType (void) const noexcept
	Get the type of hand involved in the event.
HandEvent &	setPose (const graphic::PoseF &pose) noexcept
	Set the pose of the hand.
graphic::PoseF	getPose (void) const noexcept
	Get the pose of the hand.
HandEvent &	setAim (const graphic::PoseF &aim) noexcept
	Set aim pose.
graphic::PoseF	getAim (void) const noexcept
	Get aim pose.
HandEvent &	setGrip (const graphic::PoseF &grip) noexcept
	Set grip pose.
graphic::PoseF	getGrip (void) const noexcept
	Get grip pose.
HandEvent &	setGripSurface (const graphic::PoseF &gripSurface) noexcept
	Set grip_surface pose.
graphic::PoseF	getGripSurface (void) const noexcept
	Get grip_surface pose.
Public Member Functions inherited from utility::event::Event
	Event (void)=default
	Default constructor.
virtual	~Event (void)=default
	Virtual destructor.

Static Public Member Functions
static bool	isButtonValidForHand (const HandType handType, const Button button) noexcept
	Check whether a button is valid for a given hand path.

Detailed Description

Hand button event.

Definition at line 36 of file hand_button_event.hpp.

Member Enumeration Documentation

Button

enum class utility::event::HandButtonEvent::Button

strong

Hand button identifier.

Enumerator
Unknown	Unknown button
X	X button
Y	Y button
A	A button
B	B button
Menu	Menu button
System	System button

Definition at line 42 of file hand_button_event.hpp.

Member Function Documentation

getButton()

HandButtonEvent::Button utility::event::HandButtonEvent::getButton ( void  ) const

noexcept

Get button value.

Returns

Current button.

Definition at line 66 of file hand_button_event.cpp.

isButtonPressed()

bool utility::event::HandButtonEvent::isButtonPressed ( void  ) const

noexcept

Get clicked state.

Returns

True if clicked.

Definition at line 94 of file hand_button_event.cpp.

isButtonValidForHand()

bool utility::event::HandButtonEvent::isButtonValidForHand ( const HandType  handType, const Button  button  )

staticnoexcept

Check whether a button is valid for a given hand path.

Parameters

handType	Hand side.
button	Button identifier.

Returns

True when the button is valid for that hand.

Definition at line 28 of file hand_button_event.cpp.

Here is the caller graph for this function:

isTouched()

bool utility::event::HandButtonEvent::isTouched ( void  ) const

noexcept

Get touched state.

Returns

True if touched.

Definition at line 82 of file hand_button_event.cpp.

isValidForCurrentHand()

bool utility::event::HandButtonEvent::isValidForCurrentHand ( void  ) const

noexcept

Check whether current hand/button combination is valid.

Returns

True when current button is valid for current hand type.

Definition at line 71 of file hand_button_event.cpp.

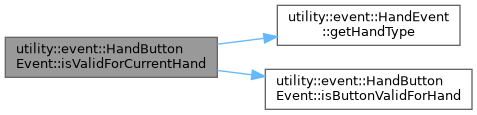

Here is the call graph for this function:

setButton()

HandButtonEvent & utility::event::HandButtonEvent::setButton ( const Button  button )

noexcept

Set button value.

Parameters

button

Hand button.

Returns

Reference to this HandButtonEvent.

Definition at line 60 of file hand_button_event.cpp.

setButtonPressed()

HandButtonEvent & utility::event::HandButtonEvent::setButtonPressed ( const bool  clicked )

noexcept

Set clicked state.

Parameters

clicked

True if clicked.

Returns

Reference to this HandButtonEvent.

Definition at line 88 of file hand_button_event.cpp.

setTouched()

HandButtonEvent & utility::event::HandButtonEvent::setTouched ( const bool  touched )

noexcept

Set touched state.

Parameters

touched

True if touched.

Returns

Reference to this HandButtonEvent.

Definition at line 76 of file hand_button_event.cpp.

---

The documentation for this class was generated from the following files:

• headers/utility/event/hand_button_event.hpp
• sources/event/hand_button_event.cpp
