RGBA color with arithmetic type components. More...

#include <headers/utility/graphic/color.hpp>

Collaboration diagram for utility::graphic::Color< Type >:

Public Member Functions
	Color (void)
	Default constructor creating opaque black.

	Color (Type red, Type green, Type blue)
	Construct color with RGB values (fully opaque).

	Color (Type red, Type green, Type blue, Type alpha)
	Construct color with RGBA values.

	Color (const Color &other)
	Copy constructor.

	Color (Color &&other) noexcept
	Move constructor.

Color &	operator= (const Color &other)
	Copy assignment operator.

Color &	operator= (Color &&other) noexcept
	Move assignment operator.

void	setRed (Type red)
	Set the red component.

Type	getRed (void) const
	Get the red component.

void	setGreen (Type green)
	Set the green component.

Type	getGreen (void) const
	Get the green component.

void	setBlue (Type blue)
	Set the blue component.

Type	getBlue (void) const
	Get the blue component.

void	setAlpha (Type alpha)
	Set the alpha (opacity) component.

Type	getAlpha (void) const
	Get the alpha (opacity) component.

void	setRGBA (Type red, Type green, Type blue, Type alpha)
	Set all RGBA components.

bool	operator== (const Color &other) const
	Equality comparison.

bool	operator!= (const Color &other) const
	Inequality comparison.

Color	operator+ (const Color &other) const
	Component-wise color addition (clamped).

Color	operator- (const Color &other) const
	Component-wise color subtraction (clamped).

Color	operator* (Type scalar) const
	Scalar multiplication of color components.

Color	grayscale (void) const
	Convert color to grayscale using luminance formula.

Color	inverted (void) const
	Invert the color (keeping alpha unchanged).

Color	lerp (const Color &other, Type t) const
	Linearly interpolate between this color and another.

Color	blendOver (const Color &background) const
	Alpha blend this color over another background color.

Color	lighter (Type factor) const
	Create a lighter version of this color.

Color	darker (Type factor) const
	Create a darker version of this color.

Color	withAlpha (Type alpha) const
	Return a copy with a different alpha value.

bool	isOpaque (void) const
	Check whether alpha is fully opaque.

bool	isTransparent (void) const
	Check whether alpha is fully transparent.

double	alpha01 (void) const
	Get alpha normalized to [0, 1].

bool	operator< (const Color &other) const
	Less-than operator for Color.

Static Protected Member Functions
static Type	clamp (Type value)
	Clamp a value to valid range based on type.

static Type	clampWide (long long value)
	Clamp a wide accumulator into the component range.

static constexpr Type	maxValue ()
	Get the maximum value for the type.

Protected Attributes
Type	_red
	Red component.

Type	_green
	Green component.

Type	_blue
	Blue component.

Type	_alpha
	Alpha (opacity) component.

Detailed Description

template<CanBeColorComponent Type>
class utility::graphic::Color< Type >

RGBA color with arithmetic type components.

Template Parameters

Type	Arithmetic type for color components (typically float or uint8_t)

Components are expected to be normalized: [0.0, 1.0] for floating-point types or [0, 255] for integral types.

Definition at line 60 of file color.hpp.

Constructor & Destructor Documentation

◆ Color() [1/5]

template<CanBeColorComponent Type>

utility::graphic::Color< Type >::Color ( void )

inline

Default constructor creating opaque black.

Definition at line 134 of file color.hpp.

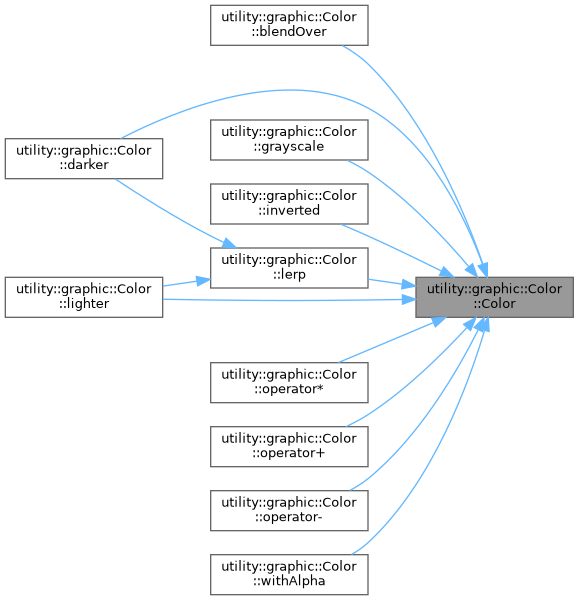

Here is the caller graph for this function:

◆ Color() [2/5]

template<CanBeColorComponent Type>

utility::graphic::Color< Type >::Color	(	Type	red,
		Type	green,
		Type	blue
	)

inline

Construct color with RGB values (fully opaque).

Parameters

red	Red component.
green	Green component.
blue	Blue component.

Definition at line 148 of file color.hpp.

Here is the call graph for this function:

◆ Color() [3/5]

template<CanBeColorComponent Type>

utility::graphic::Color< Type >::Color	(	Type	red,
		Type	green,
		Type	blue,
		Type	alpha
	)

inline

Construct color with RGBA values.

Parameters

red	Red component.
green	Green component.
blue	Blue component.
alpha	Alpha (opacity) component.

Definition at line 163 of file color.hpp.

Here is the call graph for this function:

◆ Color() [4/5]

template<CanBeColorComponent Type>

utility::graphic::Color< Type >::Color ( const Color< Type > & other )

inline

Copy constructor.

Parameters

other The color to copy from.

Definition at line 175 of file color.hpp.

◆ Color() [5/5]

template<CanBeColorComponent Type>

utility::graphic::Color< Type >::Color ( Color< Type > && other )

inlinenoexcept

Move constructor.

Parameters

other The color to move from.

Definition at line 187 of file color.hpp.

Member Function Documentation

◆ alpha01()

template<CanBeColorComponent Type>

double utility::graphic::Color< Type >::alpha01 ( void ) const

inline

Get alpha normalized to [0, 1].

Returns: Alpha as double regardless of component type.

Definition at line 514 of file color.hpp.

Here is the call graph for this function:

◆ blendOver()

template<CanBeColorComponent Type>

Color utility::graphic::Color< Type >::blendOver ( const Color< Type > & background ) const

inline

Alpha blend this color over another background color.

Parameters

background The background color.

Returns: Blended color.

Definition at line 436 of file color.hpp.

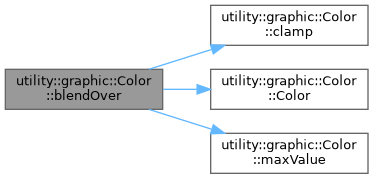

Here is the call graph for this function:

◆ clamp()

template<CanBeColorComponent Type>

static Type utility::graphic::Color< Type >::clamp ( Type value )

inlinestaticprotected

Clamp a value to valid range based on type.

Parameters

value The value to clamp.

Returns: Clamped value.

Definition at line 89 of file color.hpp.

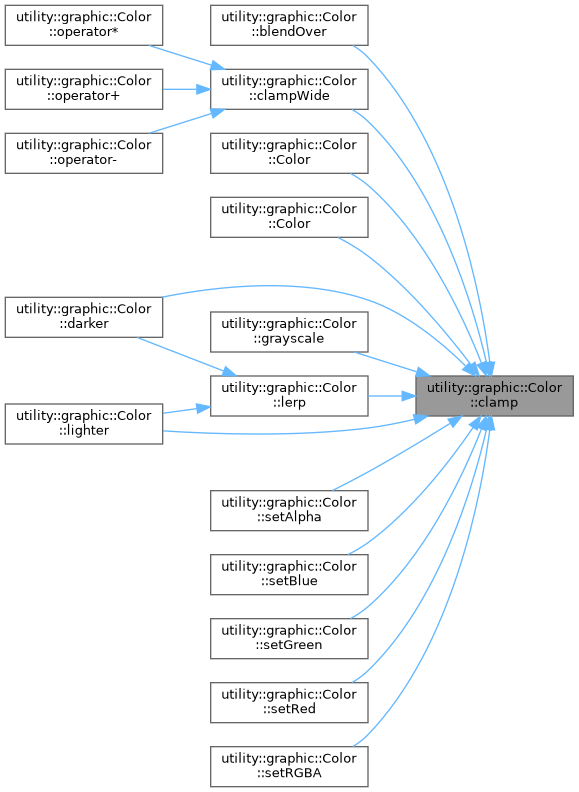

Here is the caller graph for this function:

◆ clampWide()

template<CanBeColorComponent Type>

static Type utility::graphic::Color< Type >::clampWide ( long long value )

inlinestaticprotected

Clamp a wide accumulator into the component range.

Integral arithmetic is performed in a wider type to avoid wrapping before clamping (e.g. 200+200 would truncate to 144 as uint8_t).

Parameters

value The wide value to clamp.

Returns: Clamped component.

Definition at line 106 of file color.hpp.

Here is the call graph for this function:

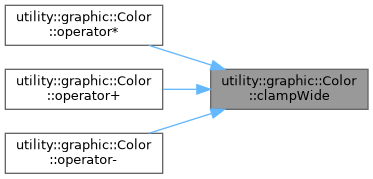

Here is the caller graph for this function:

◆ darker()

template<CanBeColorComponent Type>

Color utility::graphic::Color< Type >::darker ( Type factor ) const

inline

Create a darker version of this color.

Parameters

factor Darkening factor (0 = no change, 1 = black).

Returns: Darkened color.

Definition at line 476 of file color.hpp.

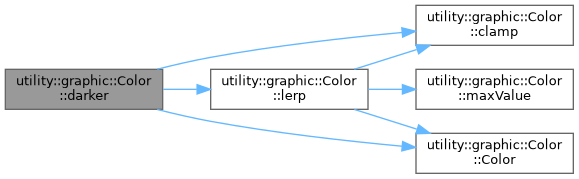

Here is the call graph for this function:

◆ getAlpha()

template<CanBeColorComponent Type>

Type utility::graphic::Color< Type >::getAlpha ( void ) const

inline

Get the alpha (opacity) component.

Returns: Alpha value.

Definition at line 297 of file color.hpp.

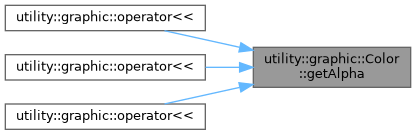

Here is the caller graph for this function:

◆ getBlue()

template<CanBeColorComponent Type>

Type utility::graphic::Color< Type >::getBlue ( void ) const

inline

Get the blue component.

Returns: Blue value.

Definition at line 279 of file color.hpp.

Here is the caller graph for this function:

◆ getGreen()

template<CanBeColorComponent Type>

Type utility::graphic::Color< Type >::getGreen ( void ) const

inline

Get the green component.

Returns: Green value.

Definition at line 261 of file color.hpp.

Here is the caller graph for this function:

◆ getRed()

template<CanBeColorComponent Type>

Type utility::graphic::Color< Type >::getRed ( void ) const

inline

Get the red component.

Returns: Red value.

Definition at line 243 of file color.hpp.

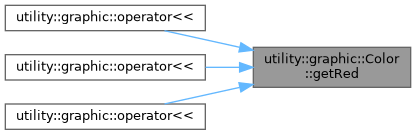

Here is the caller graph for this function:

◆ grayscale()

template<CanBeColorComponent Type>

Color utility::graphic::Color< Type >::grayscale ( void ) const

inline

Convert color to grayscale using luminance formula.

Returns: Grayscale version of this color.

Definition at line 381 of file color.hpp.

Here is the call graph for this function:

◆ inverted()

template<CanBeColorComponent Type>

Color utility::graphic::Color< Type >::inverted ( void ) const

inline

Invert the color (keeping alpha unchanged).

Returns: Inverted color.

Definition at line 399 of file color.hpp.

Here is the call graph for this function:

◆ isOpaque()

template<CanBeColorComponent Type>

bool utility::graphic::Color< Type >::isOpaque ( void ) const

inline

Check whether alpha is fully opaque.

Returns: True when alpha equals max component value.

Definition at line 496 of file color.hpp.

Here is the call graph for this function:

◆ isTransparent()

template<CanBeColorComponent Type>

bool utility::graphic::Color< Type >::isTransparent ( void ) const

inline

Check whether alpha is fully transparent.

Returns: True when alpha equals zero.

Definition at line 505 of file color.hpp.

◆ lerp()

template<CanBeColorComponent Type>

Color utility::graphic::Color< Type >::lerp	(	const Color< Type > &	other,
		Type	t
	)		const

inline

Linearly interpolate between this color and another.

Parameters

other	The target color.
t	Interpolation factor [0, 1].

Returns: Interpolated color.

Definition at line 411 of file color.hpp.

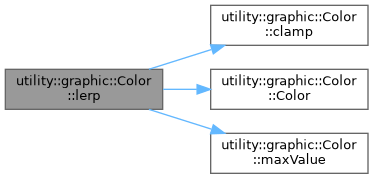

Here is the call graph for this function:

Here is the caller graph for this function:

◆ lighter()

template<CanBeColorComponent Type>

Color utility::graphic::Color< Type >::lighter ( Type factor ) const

inline

Create a lighter version of this color.

Parameters

factor Lightening factor (0 = no change, 1 = white).

Returns: Lightened color.

Definition at line 464 of file color.hpp.

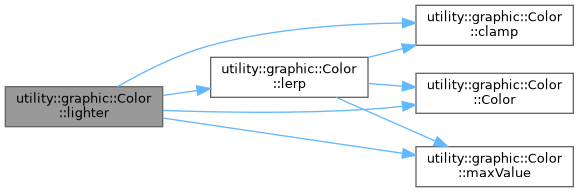

Here is the call graph for this function:

◆ maxValue()

template<CanBeColorComponent Type>

static constexpr Type utility::graphic::Color< Type >::maxValue ( )

inlinestaticconstexprprotected

Get the maximum value for the type.

Returns: Maximum value (1.0 for float, 255 for uint8_t).

Definition at line 121 of file color.hpp.

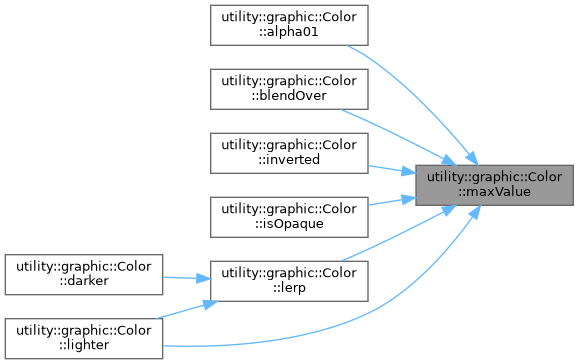

Here is the caller graph for this function:

◆ operator!=()

template<CanBeColorComponent Type>

bool utility::graphic::Color< Type >::operator!= ( const Color< Type > & other ) const

inline

Inequality comparison.

Parameters

other The color to compare with.

Returns: True if any component is not equal, false otherwise.

Definition at line 333 of file color.hpp.

◆ operator*()

template<CanBeColorComponent Type>

Color utility::graphic::Color< Type >::operator* ( Type scalar ) const

inline

Scalar multiplication of color components.

Parameters

scalar The scalar to multiply by.

Returns: Result of scalar multiplication.

Definition at line 369 of file color.hpp.

Here is the call graph for this function:

◆ operator+()

template<CanBeColorComponent Type>

Color utility::graphic::Color< Type >::operator+ ( const Color< Type > & other ) const

inline

Component-wise color addition (clamped).

Parameters

other The color to add.

Returns: Result of color addition.

Definition at line 343 of file color.hpp.

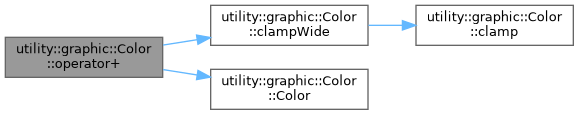

Here is the call graph for this function:

◆ operator-()

template<CanBeColorComponent Type>

Color utility::graphic::Color< Type >::operator- ( const Color< Type > & other ) const

inline

Component-wise color subtraction (clamped).

Parameters

other The color to subtract.

Returns: Result of color subtraction.

Definition at line 356 of file color.hpp.

Here is the call graph for this function:

◆ operator<()

template<CanBeColorComponent Type>

bool utility::graphic::Color< Type >::operator< ( const Color< Type > & other ) const

inline

Less-than operator for Color.

Parameters

other The other Color to compare with.

Returns: True if this color is less than the other, false otherwise.

Definition at line 525 of file color.hpp.

◆ operator=() [1/2]

template<CanBeColorComponent Type>

Color & utility::graphic::Color< Type >::operator= ( Color< Type > && other )

inlinenoexcept

Move assignment operator.

Parameters

other The color to move from.

Returns: Reference to this color.

Definition at line 216 of file color.hpp.

◆ operator=() [2/2]

template<CanBeColorComponent Type>

Color & utility::graphic::Color< Type >::operator= ( const Color< Type > & other )

inline

Copy assignment operator.

Parameters

other The color to copy from.

Returns: Reference to this color.

Definition at line 200 of file color.hpp.

◆ operator==()

template<CanBeColorComponent Type>

bool utility::graphic::Color< Type >::operator== ( const Color< Type > & other ) const

inline

Equality comparison.

Parameters

other The color to compare with.

Returns: True if all components are equal, false otherwise.

Definition at line 322 of file color.hpp.

◆ setAlpha()

template<CanBeColorComponent Type>

void utility::graphic::Color< Type >::setAlpha ( Type alpha )

inline

Set the alpha (opacity) component.

Parameters

alpha New alpha value (will be clamped to valid range).

Definition at line 288 of file color.hpp.

Here is the call graph for this function:

◆ setBlue()

template<CanBeColorComponent Type>

void utility::graphic::Color< Type >::setBlue ( Type blue )

inline

Set the blue component.

Parameters

blue	New blue value (will be clamped to valid range).

Definition at line 270 of file color.hpp.

Here is the call graph for this function:

◆ setGreen()

template<CanBeColorComponent Type>

void utility::graphic::Color< Type >::setGreen ( Type green )

inline

Set the green component.

Parameters

green New green value (will be clamped to valid range).

Definition at line 252 of file color.hpp.

Here is the call graph for this function:

◆ setRed()

template<CanBeColorComponent Type>

void utility::graphic::Color< Type >::setRed ( Type red )

inline

Set the red component.

Parameters

red	New red value (will be clamped to valid range).

Definition at line 234 of file color.hpp.

Here is the call graph for this function:

◆ setRGBA()

template<CanBeColorComponent Type>

void utility::graphic::Color< Type >::setRGBA	(	Type	red,
		Type	green,
		Type	blue,
		Type	alpha
	)

inline

Set all RGBA components.

Parameters

red	Red component.
green	Green component.
blue	Blue component.
alpha	Alpha component.

Definition at line 309 of file color.hpp.

Here is the call graph for this function:

◆ withAlpha()

template<CanBeColorComponent Type>

Color utility::graphic::Color< Type >::withAlpha ( Type alpha ) const

inline

Return a copy with a different alpha value.

Parameters

alpha Alpha value to apply (clamped).

Returns: New color with updated alpha.

Definition at line 487 of file color.hpp.

Here is the call graph for this function:

Member Data Documentation

◆ _alpha

template<CanBeColorComponent Type>

Type utility::graphic::Color< Type >::_alpha

protected

Alpha (opacity) component.

Definition at line 82 of file color.hpp.

◆ _blue

template<CanBeColorComponent Type>

Type utility::graphic::Color< Type >::_blue

protected

Blue component.

Definition at line 77 of file color.hpp.

◆ _green

template<CanBeColorComponent Type>

Type utility::graphic::Color< Type >::_green

protected

Green component.

Definition at line 72 of file color.hpp.

◆ _red

template<CanBeColorComponent Type>

Type utility::graphic::Color< Type >::_red

protected

Red component.

Definition at line 67 of file color.hpp.

The documentation for this class was generated from the following file:

headers/utility/graphic/color.hpp

Public Member Functions

Static Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Color() [1/5]

◆ Color() [2/5]

◆ Color() [3/5]

◆ Color() [4/5]

◆ Color() [5/5]

Member Function Documentation

◆ alpha01()

◆ blendOver()

◆ clamp()

◆ clampWide()

◆ darker()

◆ getAlpha()

◆ getBlue()

◆ getGreen()

◆ getRed()

◆ grayscale()

◆ inverted()

◆ isOpaque()

◆ isTransparent()

◆ lerp()

◆ lighter()

◆ maxValue()

◆ operator!=()

◆ operator*()

◆ operator+()

◆ operator-()

◆ operator<()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ setAlpha()

◆ setBlue()

◆ setGreen()

◆ setRed()

◆ setRGBA()

◆ withAlpha()

Member Data Documentation

◆ _alpha

◆ _blue

◆ _green

◆ _red
