Storage for text content and rendering properties. More...

#include <headers/utility/graphic/text/text.hpp>

Inheritance diagram for utility::graphic::Text:

[legend]

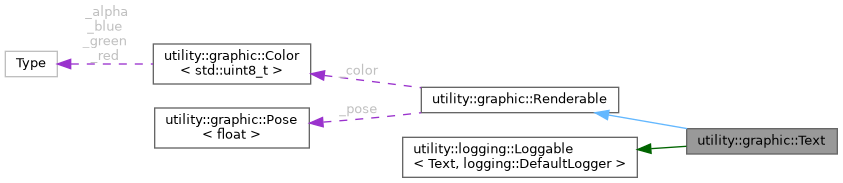

Collaboration diagram for utility::graphic::Text:

[legend]

Public Member Functions
	Text (std::shared_ptr< RessourceProvider > ressourceProvider, const PoseF &pose, const Color32Bit &color, const std::string &content, uint32_t fontSize, const std::string &font)
	Constructor.

	Text (const Text &other)=delete
	Copy constructor.

	Text (Text &&other) noexcept=default
	Move constructor.

std::shared_ptr< Mesh >	getMesh () const
	Get the mesh for rendering the text.

const std::string &	getFontFamily (void) const
	Get the font family (path) used for rendering the text.

Text &	operator= (const Text &other)=delete
	Copy assignment operator.

Text &	operator= (Text &&other) noexcept=default
	Move assignment operator.

const std::string &	getContent (void) const
	Get the text content.

Text &	setContent (const std::string &content)
	Set the text content.

uint32_t	getFontSize (void) const
	Get the font size.

graphic::SizeF	getTextDimensions (void) const
	Get the dimensions of the rendered text.

Text &	setFontSize (uint32_t fontSize)
	Set the font size.

RenderableType	getRenderableType (void) const override
	Get the RenderableType of this object.

std::string	getMaterialName () const override
	Get the material name.

bool	empty (void) const noexcept
	Check if text content is empty.

bool	hasFontPath (void) const noexcept
	Check if font path is set.

Text &	clearContent (void)
	Clear text content.

bool	operator== (const Text &other) const
	Equality comparison.

bool	operator!= (const Text &other) const
	Inequality comparison.

Public Member Functions inherited from utility::graphic::Renderable
	Renderable (const PoseF &pose, const Color32Bit &color)
	Default constructor for Renderable.

virtual	~Renderable ()=default
	Virtual destructor for Renderable.

Renderable &	setPose (const PoseF &pose)
	Set the text pose.

void	setPose (PoseF &&pose)
	Set the text pose.

const PoseF &	getPose (void) const
	Get the text pose.

glm::mat4	getModelMatrix (void) const
	Get the object-to-world model matrix of this renderable.

Renderable &	setColor (const graphic::Color32Bit &color)
	Set the text color.

void	setColor (graphic::Color32Bit &&color)
	Set the text color.

const graphic::Color32Bit &	getColor (void) const
	Get the text color.].

std::vector< std::shared_ptr< Mesh > >	getMeshes () const
	Get the meshes associated with this renderable object.

Protected Member Functions
void	updateMesh (void)
	Updates the mesh for rendering the text based on the current content, font, and font size.

codePointString	utf8ToCodepoints (const std::string &str) const
	Converts a UTF-8 encoded string to a string of Unicode code points.

Protected Member Functions inherited from utility::logging::Loggable< Text, logging::DefaultLogger >
	Loggable (void)
	Construct a Loggable with the specified LoggerType.

	Loggable (Loggable &&other) noexcept
	Move constructor for Loggable.

Loggable &	operator= (Loggable &&other) noexcept
	Move assignment operator for Loggable.

LoggerType &	getLogger (void)
	Get the internal logger.

LoggerType &	getLogger (void) const
	Get the internal logger.

virtual	~Loggable (void)=default
	Virtual destructor for proper cleanup.

Protected Attributes
std::shared_ptr< Font >	_font
	Shared pointer to the font used for rendering.

Protected Attributes inherited from utility::graphic::Renderable
std::vector< std::shared_ptr< Mesh > >	_meshes
	Meshes associated with this renderable object.

Color32Bit	_color
	Text RGBA color.

PoseF	_pose
	World pose (position and orientation) of the text.

Additional Inherited Members
Public Types inherited from utility::graphic::Renderable
enum class	RenderableType { Unknown = 0 , Model = 1 , Text = 3 , Mesh = 4 }

Detailed Description

Storage for text content and rendering properties.

Encapsulates all properties needed to render text, including content, font information and size.

Definition at line 72 of file text.hpp.

Constructor & Destructor Documentation

◆ Text() [1/3]

utility::graphic::Text::Text	(	std::shared_ptr< RessourceProvider >	ressourceProvider,
		const PoseF &	pose,
		const Color32Bit &	color,
		const std::string &	content,
		uint32_t	fontSize,
		const std::string &	font
	)

Constructor.

This constructor initializes a Text object with the specified content, font size, and font path. It also takes references to a RessourceProvider and an SystemIO, which are used to load the necessary font resources for rendering the text.

Parameters

ressourceProvider	A reference to the RessourceProvider instance used to load font resources.
pose	The initial position and orientation for the text.
color	The initial color of the text.
content	The text content to be displayed.
fontSize	The font size in points for rendering the text.
font	The file path to the font resource to be used for rendering the text.

Definition at line 32 of file text.cpp.

Here is the call graph for this function:

◆ Text() [2/3]

utility::graphic::Text::Text ( const Text & other )

delete

Copy constructor.

Parameters

other The Text object to copy from.

◆ Text() [3/3]

utility::graphic::Text::Text ( Text && other )

defaultnoexcept

Move constructor.

Parameters

other The Text object to move from.

Member Function Documentation

◆ clearContent()

Text & utility::graphic::Text::clearContent ( void )

inline

Clear text content.

Returns: Reference to this Text instance for chaining.

Definition at line 264 of file text.hpp.

◆ empty()

bool utility::graphic::Text::empty ( void ) const

inlinenoexcept

Check if text content is empty.

Returns: True if content has no characters.

Definition at line 246 of file text.hpp.

◆ getContent()

const std::string & utility::graphic::Text::getContent ( void ) const

Get the text content.

Returns: Reference to the text content string.

Definition at line 58 of file text.cpp.

◆ getFontFamily()

const std::string & utility::graphic::Text::getFontFamily ( void ) const

Get the font family (path) used for rendering the text.

This method returns the path to the font file that is currently being used to render the text. The font family is determined by the font file specified during the construction of the Text object or when the font is changed. It can be used to identify the font being used for rendering or to retrieve additional font information if needed.

Returns: A const reference to the string containing the path to the font file used for rendering the text.

Definition at line 53 of file text.cpp.

Here is the caller graph for this function:

◆ getFontSize()

uint32_t utility::graphic::Text::getFontSize ( void ) const

Get the font size.

Returns: Font size in points.

Definition at line 70 of file text.cpp.

Here is the caller graph for this function:

◆ getMaterialName()

std::string utility::graphic::Text::getMaterialName ( void ) const

overridevirtual

Get the material name.

Returns: The name of the material used for rendering the text.

Implements utility::graphic::Renderable.

Definition at line 89 of file text.cpp.

Here is the call graph for this function:

◆ getMesh()

std::shared_ptr< Mesh > utility::graphic::Text::getMesh ( ) const

Get the mesh for rendering the text.

This method returns a shared pointer to the Mesh object that represents the geometry of the text for rendering. The mesh is generated based on the current text content, font, and font size, and it is updated whenever the text properties change (e.g., when the content or font size is modified).

Returns: A shared pointer to the Mesh object for rendering the text.

Definition at line 48 of file text.cpp.

◆ getRenderableType()

Renderable::RenderableType utility::graphic::Text::getRenderableType ( void ) const

overridevirtual

Get the RenderableType of this object.

Returns: RenderableType::Text

Implements utility::graphic::Renderable.

Definition at line 84 of file text.cpp.

◆ getTextDimensions()

graphic::SizeF utility::graphic::Text::getTextDimensions ( void ) const

Get the dimensions of the rendered text.

This method calculates and returns the dimensions of the rendered text based on the current content, font, and font size. It uses the Font class to retrieve the glyph information for the text content and computes the overall width and height of the text as it would be rendered, which can be useful for layout and positioning purposes.

Returns: A SizeF containing the width and height of the rendered text.

Definition at line 94 of file text.cpp.

Here is the call graph for this function:

◆ hasFontPath()

bool utility::graphic::Text::hasFontPath ( void ) const

inlinenoexcept

Check if font path is set.

Returns: True if a non-empty font path is configured.

Definition at line 255 of file text.hpp.

◆ operator!=()

bool utility::graphic::Text::operator!= ( const Text & other ) const

inline

Inequality comparison.

Parameters

other Text object to compare with.

Returns: True when any property differs.

Definition at line 287 of file text.hpp.

◆ operator=() [1/2]

Text & utility::graphic::Text::operator= ( const Text & other )

delete

Copy assignment operator.

Parameters

other The Text object to copy from.

Returns: A reference to this Text object.

◆ operator=() [2/2]

Text & utility::graphic::Text::operator= ( Text && other )

defaultnoexcept

Move assignment operator.

Parameters

other The Text object to move from.

Returns: A reference to this Text object.

◆ operator==()

bool utility::graphic::Text::operator== ( const Text & other ) const

inline

Equality comparison.

Parameters

other Text object to compare with.

Returns: True when the visible text state is equal.

Definition at line 275 of file text.hpp.

◆ setContent()

Text & utility::graphic::Text::setContent ( const std::string & content )

Set the text content.

Parameters

content The new text content.

Returns: Reference to this Text instance for chaining.

Definition at line 63 of file text.cpp.

Here is the call graph for this function:

◆ setFontSize()

Text & utility::graphic::Text::setFontSize ( uint32_t fontSize )

Set the font size.

Parameters

fontSize Font size in points.

Returns: Reference to this Text instance for chaining.

Definition at line 75 of file text.cpp.

Here is the call graph for this function:

◆ updateMesh()

void utility::graphic::Text::updateMesh ( void )

protected

Updates the mesh for rendering the text based on the current content, font, and font size.

This method regenerates the mesh geometry for the text whenever the content, font, or font size changes. It uses the Font class to retrieve the necessary glyph information and constructs a new Mesh object that represents the geometry of the text for rendering.

Definition at line 117 of file text.cpp.

Here is the call graph for this function:

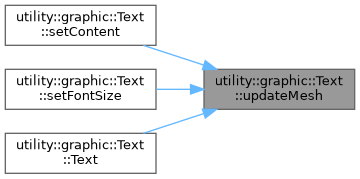

Here is the caller graph for this function:

◆ utf8ToCodepoints()

std::vector< uint32_t > utility::graphic::Text::utf8ToCodepoints ( const std::string & str ) const

protected

Converts a UTF-8 encoded string to a string of Unicode code points.

This method takes a UTF-8 encoded string as input and converts it to a string of Unicode code points, which can be used for rendering text with the appropriate glyphs. It processes the UTF-8 encoding to extract the individual Unicode code points and returns them in a codePointString format, which is a vector of uint32_t values representing the Unicode code

Parameters

str	The UTF-8 encoded string to convert.

Returns: A codePointString containing the Unicode code points extracted from the input UTF-8 string.

Definition at line 177 of file text.cpp.

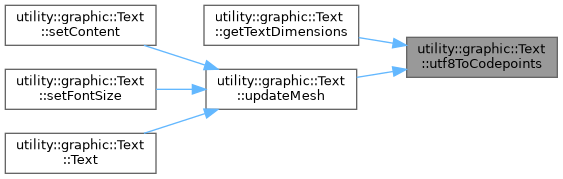

Here is the caller graph for this function:

Member Data Documentation

◆ _font

std::shared_ptr<Font> utility::graphic::Text::_font

protected

Shared pointer to the font used for rendering.

Definition at line 83 of file text.hpp.

The documentation for this class was generated from the following files:

headers/utility/graphic/text/text.hpp
sources/graphic/text/text.cpp
