evan::ViewSet Class Reference

Describes a set of views to render, independent of the swapchain image sets. More...

#include <headers/evan/ViewSet.hpp>

Classes
struct	View
	A single view together with the swapchain it targets. More...

Public Member Functions
void	addView (const utility::graphic::ViewF &view, std::size_t swapchainIndex)
	Appends a view bound to the given swapchain.
void	setView (std::size_t index, const utility::graphic::ViewF &view)
	Sets the view state at the given index, growing the set if necessary.
void	setSwapchainIndex (std::size_t index, std::size_t swapchainIndex)
	Sets the swapchain index of the view at the given index, growing the set if necessary.
void	resize (std::size_t count)
	Resizes the view set to contain exactly count views.
void	clear ()
	Removes all views from the set.
std::size_t	size () const
bool	empty () const
View &	operator[] (std::size_t index)
	Accesses the view at the given index (unchecked).
const View &	operator[] (std::size_t index) const
	Accesses the view at the given index (unchecked, const).
View &	at (std::size_t index)
	Accesses the view at the given index with bounds checking.
const View &	at (std::size_t index) const
	Accesses the view at the given index with bounds checking (const).
utility::graphic::ViewF	getView (std::size_t index) const
	Retrieves the view state for the given index.
glm::mat4	getProjection (std::size_t index) const
	Retrieves the projection matrix for the given index.

Detailed Description

Describes a set of views to render, independent of the swapchain image sets.

A ViewSet is an ordered list of views (camera poses + projections). Each view is associated with the index of the swapchain image set it renders into. This decouples the concept of "how many views must be rendered" from "how many swapchains / images exist":

• Desktop: one view rendering into swapchain set 0.
• OpenXR: one view per eye, each rendering into its own swapchain set.
• Desktop multi-view (future): several views sharing swapchain set 0.

The Renderer iterates over a ViewSet to know which view matrices to upload (one uniform buffer update per view) and which swapchain image to render each view into.

Definition at line 36 of file ViewSet.hpp.

Member Function Documentation

addView()

void evan::ViewSet::addView	(	const utility::graphic::ViewF &	view,
		std::size_t	swapchainIndex
	)

Appends a view bound to the given swapchain.

Parameters

view	The view state to append.
swapchainIndex	Index of the swapchain image set to target.

at() [1/2]

View & evan::ViewSet::at ( std::size_t  index )

inline

Accesses the view at the given index with bounds checking.

Parameters

index

Index of the view to access.

Returns

The view entry.

Definition at line 134 of file ViewSet.hpp.

at() [2/2]

const View & evan::ViewSet::at ( std::size_t  index ) const

inline

Accesses the view at the given index with bounds checking (const).

Parameters

index

Index of the view to access.

Returns

The view entry.

Definition at line 146 of file ViewSet.hpp.

empty()

bool evan::ViewSet::empty

(

)

const

Returns

True when the set contains no view.

getProjection()

glm::mat4 evan::ViewSet::getProjection

(

std::size_t

index

)

const

Retrieves the projection matrix for the given index.

Parameters

index

Index of the view.

Returns

The projection matrix.

getView()

utility::graphic::ViewF evan::ViewSet::getView

(

std::size_t

index

)

const

Retrieves the view state for the given index.

Parameters

index

Index of the view.

Returns

The view state.

operator[]() [1/2]

View & evan::ViewSet::operator[] ( std::size_t  index )

inline

Accesses the view at the given index (unchecked).

Parameters

index

Index of the view to access.

Returns

The view entry.

Definition at line 112 of file ViewSet.hpp.

operator[]() [2/2]

const View & evan::ViewSet::operator[] ( std::size_t  index ) const

inline

Accesses the view at the given index (unchecked, const).

Parameters

index

Index of the view to access.

Returns

The view entry.

Definition at line 123 of file ViewSet.hpp.

resize()

void evan::ViewSet::resize

(

std::size_t

count

)

Resizes the view set to contain exactly count views.

Parameters

count

The new number of views.

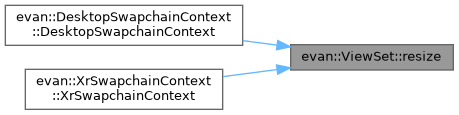

Here is the caller graph for this function:

setSwapchainIndex()

void evan::ViewSet::setSwapchainIndex	(	std::size_t	index,
		std::size_t	swapchainIndex
	)

Sets the swapchain index of the view at the given index, growing the set if necessary.

Parameters

index	Index of the view to update.
swapchainIndex	Index of the swapchain image set to target.

setView()

void evan::ViewSet::setView	(	std::size_t	index,
		const utility::graphic::ViewF &	view
	)

Sets the view state at the given index, growing the set if necessary.

The existing swapchain index is preserved when the view already exists; new entries default to swapchain index 0.

Parameters

index	Index of the view to set.
view	The view state to store.

size()

std::size_t evan::ViewSet::size

(

)

const

Returns

The number of views in the set.

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• headers/evan/ViewSet.hpp
