The Primitive class represents a basic geometric shape that can be rendered in the graphics application. More...

#include <headers/utility/graphic/primitive.hpp>

Inheritance diagram for utility::graphic::Primitive:

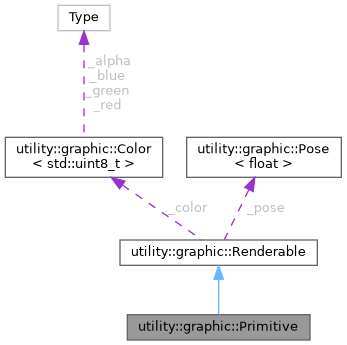

Collaboration diagram for utility::graphic::Primitive:

[legend]

Public Member Functions
	Primitive (const std::vector< Mesh > &meshes)
	Constructs a Primitive object with the specified meshes.

	Primitive (const Primitive &)=delete
	Deleted copy constructor for Primitive.

	~Primitive ()=default
	Default destructor for Primitive.

void	addMesh (const Mesh &mesh)
	Add a mesh to the primitive.

RenderableType	getRenderableType (void) const override
	Get the type of this renderable object.

std::string	getMaterialName (void) const override
	Get the material name.

Primitive &	operator= (const Primitive &)=delete
	Deleted copy assignment operator for Primitive.

Public Member Functions inherited from utility::graphic::Renderable
	Renderable (const PoseF &pose, const Color32Bit &color)
	Default constructor for Renderable.

virtual	~Renderable ()=default
	Virtual destructor for Renderable.

Renderable &	setPose (const PoseF &pose)
	Set the text pose.

void	setPose (PoseF &&pose)
	Set the text pose.

const PoseF &	getPose (void) const
	Get the text pose.

glm::mat4	getModelMatrix (void) const
	Get the object-to-world model matrix of this renderable.

Renderable &	setColor (const graphic::Color32Bit &color)
	Set the text color.

void	setColor (graphic::Color32Bit &&color)
	Set the text color.

const graphic::Color32Bit &	getColor (void) const
	Get the text color.].

std::vector< std::shared_ptr< Mesh > >	getMeshes () const
	Get the meshes associated with this renderable object.

Additional Inherited Members
Public Types inherited from utility::graphic::Renderable
enum class	RenderableType { Unknown = 0 , Model = 1 , Text = 3 , Mesh = 4 }

Protected Attributes inherited from utility::graphic::Renderable
std::vector< std::shared_ptr< Mesh > >	_meshes
	Meshes associated with this renderable object.

Color32Bit	_color
	Text RGBA color.

PoseF	_pose
	World pose (position and orientation) of the text.

Detailed Description

The Primitive class represents a basic geometric shape that can be rendered in the graphics application.

The Primitive class serves as a base class for simple geometric shapes such as cubes, spheres, and planes. It provides a common interface and properties for these shapes, allowing for consistent handling and rendering within the graphics application. The Primitive class can be extended to create specific types of primitives with additional properties and behaviors as needed.

Definition at line 26 of file primitive.hpp.

Constructor & Destructor Documentation

◆ Primitive()

utility::graphic::Primitive::Primitive ( const std::vector< Mesh > & meshes )

Constructs a Primitive object with the specified meshes.

Parameters

meshes A vector of Mesh objects representing the geometry of the primitive.

This constructor initializes the Primitive object with the provided meshes, which define the geometry of the primitive for rendering. The meshes are stored internally and can be accessed or modified as needed for rendering or further processing.

Definition at line 12 of file primitive.cpp.

Here is the call graph for this function:

Member Function Documentation

◆ addMesh()

void utility::graphic::Primitive::addMesh ( const Mesh & mesh )

Add a mesh to the primitive.

Parameters

mesh	The Mesh object representing the geometry to be added to the primitive.

This method appends the provided mesh to the internal list of meshes of the primitive, allowing for dynamic construction of the primitive geometry. The added mesh will be included in the rendering of the primitive, and it can be used to create more complex shapes by combining multiple meshes together.

Definition at line 20 of file primitive.cpp.

Here is the caller graph for this function:

◆ getMaterialName()

std::string utility::graphic::Primitive::getMaterialName ( void ) const

overridevirtual

Get the material name.

Returns: The name of the material used for rendering the primitive.

Implements utility::graphic::Renderable.

Definition at line 30 of file primitive.cpp.

◆ getRenderableType()

Renderable::RenderableType utility::graphic::Primitive::getRenderableType ( void ) const

overridevirtual

Get the type of this renderable object.

This method returns the RenderableType enumeration value that indicates the specific type of this renderable object. The RenderableType can be used to identify whether the object is a model, text, mesh, or any other defined renderable type. This information can be useful for rendering systems to handle different types of renderable objects appropriately based on their characteristics and requirements.

Returns: The RenderableType of this renderable object.

Implements utility::graphic::Renderable.

Definition at line 25 of file primitive.cpp.

The documentation for this class was generated from the following files:

headers/utility/graphic/primitive.hpp
sources/graphic/primitive.cpp
