Geometric ray with arithmetic component type and fixed dimension. More...

#include <headers/utility/graphic/ray.hpp>

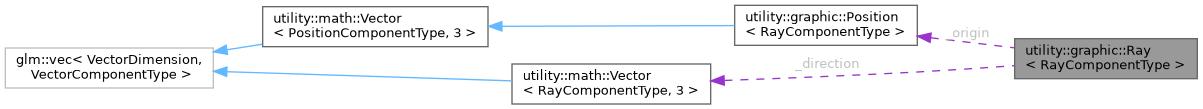

Collaboration diagram for utility::graphic::Ray< RayComponentType >:

[legend]

Public Member Functions
	Ray (void)
	Default constructor creating a ray at origin along the first axis.

	Ray (math::Vector< RayComponentType, 3 > origin, math::Vector< RayComponentType, 3 > direction)
	Construct ray from origin and direction.

	Ray (const Ray &other)
	Copy constructor.

	Ray (Ray &&other) noexcept
	Move constructor.

Ray &	operator= (const Ray &other)
	Copy assignment operator.

Ray &	operator= (Ray &&other) noexcept
	Move assignment operator.

void	setOrigin (const math::Vector< RayComponentType, 3 > &origin)
	Set the ray origin.

void	setOrigin (const Position< RayComponentType > &origin)
	Set the ray origin using a Position value.

math::Vector< RayComponentType, 3 >	getOrigin () const
	Get the ray origin.

void	setDirection (const math::Vector< RayComponentType, 3 > &direction)
	Set the ray direction.

math::Vector< RayComponentType, 3 >	getDirection (void) const
	Get the ray direction.

const Position< RayComponentType > &	origin (void) const noexcept
	Access the ray origin by const reference.

const math::Vector< RayComponentType, 3 > &	direction (void) const noexcept
	Access the ray direction by const reference.

math::Vector< RayComponentType, 3 >	normalizedDirection () const
	Get a normalized copy of the ray direction.

math::Vector< RayComponentType, 3 >	pointAt (RayComponentType distanceParameter) const
	Evaluate a point on the ray at the provided parameter.

math::Vector< RayComponentType, 3 >	at (RayComponentType distanceParameter) const
	Alias for pointAt to match common ray APIs.

void	translate (const math::Vector< RayComponentType, 3 > &offset)
	Translate ray origin by the provided offset.

Ray	translated (const math::Vector< RayComponentType, 3 > &offset) const
	Get translated ray copy.

bool	operator== (const Ray &other) const
	Equality comparison.

bool	operator!= (const Ray &other) const
	Inequality comparison.

template<typename RectanglePoseType >
bool	intersectRectangle (const RectanglePoseType &rectanglePose, const math::Vector2F &rectangleSize) const
	Check for intersection with an axis-aligned rectangle plane.

utility::graphic::Mesh	convertToMesh (float length, float radius, int segments, utility::graphic::Color32Bit color={ 255, 255, 255, 255 }) const
	Convert the ray into a mesh representation for visualization.

Static Protected Member Functions
static void	validateDirection (const math::Vector< RayComponentType, 3 > &direction)
	Validate that a direction vector is non-zero.

Protected Attributes
Position< RayComponentType >	_origin
	Origin point of the ray.

math::Vector< RayComponentType, 3 >	_direction
	Direction vector of the ray (must be non-zero).

Detailed Description

template<CanBeRayComponent RayComponentType>
class utility::graphic::Ray< RayComponentType >

Geometric ray with arithmetic component type and fixed dimension.

Template Parameters

Type	Arithmetic type for origin and direction components.
Dimension	Compile-time dimension of the ray vectors.

Definition at line 60 of file ray.hpp.

Constructor & Destructor Documentation

◆ Ray() [1/4]

template<CanBeRayComponent RayComponentType>

utility::graphic::Ray< RayComponentType >::Ray ( void )

inline

Default constructor creating a ray at origin along the first axis.

Definition at line 94 of file ray.hpp.

Here is the caller graph for this function:

◆ Ray() [2/4]

template<CanBeRayComponent RayComponentType>

utility::graphic::Ray< RayComponentType >::Ray	(	math::Vector< RayComponentType, 3 >	origin,
		math::Vector< RayComponentType, 3 >	direction
	)

inline

Construct ray from origin and direction.

Parameters

origin	Origin point.
direction	Direction vector (must be non-zero).

Exceptions

std::invalid_argument if direction is the zero vector.

Definition at line 107 of file ray.hpp.

Here is the call graph for this function:

◆ Ray() [3/4]

template<CanBeRayComponent RayComponentType>

utility::graphic::Ray< RayComponentType >::Ray ( const Ray< RayComponentType > & other )

inline

Copy constructor.

Parameters

other The ray to copy from.

Definition at line 119 of file ray.hpp.

◆ Ray() [4/4]

template<CanBeRayComponent RayComponentType>

utility::graphic::Ray< RayComponentType >::Ray ( Ray< RayComponentType > && other )

inlinenoexcept

Move constructor.

Parameters

other The ray to move from.

Definition at line 129 of file ray.hpp.

Member Function Documentation

◆ at()

template<CanBeRayComponent RayComponentType>

math::Vector< RayComponentType, 3 > utility::graphic::Ray< RayComponentType >::at ( RayComponentType distanceParameter ) const

inline

Alias for pointAt to match common ray APIs.

Parameters

distanceParameter Parameter value measured along direction.

Returns: Point computed as origin + direction * parameter.

Definition at line 257 of file ray.hpp.

Here is the call graph for this function:

◆ convertToMesh()

template<CanBeRayComponent RayComponentType>

utility::graphic::Mesh utility::graphic::Ray< RayComponentType >::convertToMesh	(	float	length,
		float	radius,
		int	segments,
		utility::graphic::Color32Bit	color = `{ 255, 255, 255, 255 }`
	)		const

inline

Convert the ray into a mesh representation for visualization.

Parameters

length	Length of the ray mesh.
radius	Radius of the ray mesh.
segments	Number of segments around the circumference.
color	Color of the mesh vertices.

Returns: Mesh representing the ray as a cylinder.

Definition at line 386 of file ray.hpp.

◆ direction()

template<CanBeRayComponent RayComponentType>

const math::Vector< RayComponentType, 3 > & utility::graphic::Ray< RayComponentType >::direction ( void ) const

inlinenoexcept

Access the ray direction by const reference.

Returns: Const reference to direction.

Definition at line 226 of file ray.hpp.

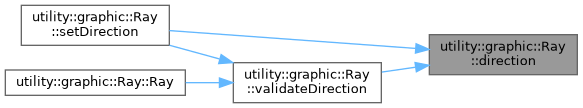

Here is the caller graph for this function:

◆ getDirection()

template<CanBeRayComponent RayComponentType>

math::Vector< RayComponentType, 3 > utility::graphic::Ray< RayComponentType >::getDirection ( void ) const

inline

Get the ray direction.

Returns: Direction vector.

Definition at line 208 of file ray.hpp.

Here is the caller graph for this function:

◆ getOrigin()

template<CanBeRayComponent RayComponentType>

math::Vector< RayComponentType, 3 > utility::graphic::Ray< RayComponentType >::getOrigin ( ) const

inline

Get the ray origin.

Returns: Origin vector.

Definition at line 188 of file ray.hpp.

Here is the caller graph for this function:

◆ intersectRectangle()

template<CanBeRayComponent RayComponentType>

template<typename RectanglePoseType >

bool utility::graphic::Ray< RayComponentType >::intersectRectangle	(	const RectanglePoseType &	rectanglePose,
		const math::Vector2F &	rectangleSize
	)		const

inline

Check for intersection with an axis-aligned rectangle plane.

Parameters

rectanglePose	Pose-like object providing position and orientation accessors.
rectangleSize	Size of the rectangle (width, height).

Returns: True if the ray intersects the rectangle, false if it misses or is parallel. Note that rays originating inside the rectangle are considered intersecting. Rays parallel to the rectangle plane that lie in the plane are also considered intersecting, while those that do not lie in the plane are considered non-intersecting.

Definition at line 314 of file ray.hpp.

Here is the call graph for this function:

◆ normalizedDirection()

template<CanBeRayComponent RayComponentType>

math::Vector< RayComponentType, 3 > utility::graphic::Ray< RayComponentType >::normalizedDirection ( ) const

inline

Get a normalized copy of the ray direction.

Returns: Unit-length direction vector.

Definition at line 235 of file ray.hpp.

◆ operator!=()

template<CanBeRayComponent RayComponentType>

bool utility::graphic::Ray< RayComponentType >::operator!= ( const Ray< RayComponentType > & other ) const

inline

Inequality comparison.

Parameters

other Ray to compare with.

Returns: True when origin or direction differ.

Definition at line 296 of file ray.hpp.

◆ operator=() [1/2]

template<CanBeRayComponent RayComponentType>

Ray & utility::graphic::Ray< RayComponentType >::operator= ( const Ray< RayComponentType > & other )

inline

Copy assignment operator.

Parameters

other The ray to copy from.

Returns: Reference to this ray.

Definition at line 140 of file ray.hpp.

◆ operator=() [2/2]

template<CanBeRayComponent RayComponentType>

Ray & utility::graphic::Ray< RayComponentType >::operator= ( Ray< RayComponentType > && other )

inlinenoexcept

Move assignment operator.

Parameters

other The ray to move from.

Returns: Reference to this ray.

Definition at line 154 of file ray.hpp.

◆ operator==()

template<CanBeRayComponent RayComponentType>

bool utility::graphic::Ray< RayComponentType >::operator== ( const Ray< RayComponentType > & other ) const

inline

Equality comparison.

Parameters

other Ray to compare with.

Returns: True when origin and direction are equal.

Definition at line 286 of file ray.hpp.

◆ origin()

template<CanBeRayComponent RayComponentType>

const Position< RayComponentType > & utility::graphic::Ray< RayComponentType >::origin ( void ) const

inlinenoexcept

Access the ray origin by const reference.

Returns: Const reference to origin.

Definition at line 217 of file ray.hpp.

Here is the caller graph for this function:

◆ pointAt()

template<CanBeRayComponent RayComponentType>

math::Vector< RayComponentType, 3 > utility::graphic::Ray< RayComponentType >::pointAt ( RayComponentType distanceParameter ) const

inline

Evaluate a point on the ray at the provided parameter.

Parameters

distanceParameter Parameter value measured along direction.

Returns: Point computed as origin + direction * parameter.

Definition at line 246 of file ray.hpp.

Here is the caller graph for this function:

◆ setDirection()

template<CanBeRayComponent RayComponentType>

void utility::graphic::Ray< RayComponentType >::setDirection ( const math::Vector< RayComponentType, 3 > & direction )

inline

Set the ray direction.

Parameters

direction New direction vector (must be non-zero).

Exceptions

std::invalid_argument if direction is the zero vector.

Definition at line 198 of file ray.hpp.

Here is the call graph for this function:

◆ setOrigin() [1/2]

template<CanBeRayComponent RayComponentType>

void utility::graphic::Ray< RayComponentType >::setOrigin ( const math::Vector< RayComponentType, 3 > & origin )

inline

Set the ray origin.

Parameters

origin New origin vector.

Definition at line 170 of file ray.hpp.

Here is the call graph for this function:

◆ setOrigin() [2/2]

template<CanBeRayComponent RayComponentType>

void utility::graphic::Ray< RayComponentType >::setOrigin ( const Position< RayComponentType > & origin )

inline

Set the ray origin using a Position value.

Parameters

origin New origin position.

Definition at line 179 of file ray.hpp.

Here is the call graph for this function:

◆ translate()

template<CanBeRayComponent RayComponentType>

void utility::graphic::Ray< RayComponentType >::translate ( const math::Vector< RayComponentType, 3 > & offset )

inline

Translate ray origin by the provided offset.

Parameters

offset Translation vector.

Definition at line 266 of file ray.hpp.

◆ translated()

template<CanBeRayComponent RayComponentType>

Ray utility::graphic::Ray< RayComponentType >::translated ( const math::Vector< RayComponentType, 3 > & offset ) const

inline

Get translated ray copy.

Parameters

offset Translation vector.

Returns: Ray copy with translated origin.

Definition at line 276 of file ray.hpp.

Here is the call graph for this function:

◆ validateDirection()

template<CanBeRayComponent RayComponentType>

static void utility::graphic::Ray< RayComponentType >::validateDirection ( const math::Vector< RayComponentType, 3 > & direction )

inlinestaticprotected

Validate that a direction vector is non-zero.

Parameters

direction Direction vector to validate.

Exceptions

std::invalid_argument if direction is the zero vector.

Definition at line 79 of file ray.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ _direction

template<CanBeRayComponent RayComponentType>

math::Vector<RayComponentType, 3> utility::graphic::Ray< RayComponentType >::_direction

protected

Direction vector of the ray (must be non-zero).

Definition at line 72 of file ray.hpp.

◆ _origin

template<CanBeRayComponent RayComponentType>

Position<RayComponentType> utility::graphic::Ray< RayComponentType >::_origin

protected

Origin point of the ray.

Definition at line 67 of file ray.hpp.

The documentation for this class was generated from the following file:

headers/utility/graphic/ray.hpp

Public Member Functions

Static Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Ray() [1/4]

◆ Ray() [2/4]

◆ Ray() [3/4]

◆ Ray() [4/4]

Member Function Documentation

◆ at()

◆ convertToMesh()

◆ direction()

◆ getDirection()

◆ getOrigin()

◆ intersectRectangle()

◆ normalizedDirection()

◆ operator!=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ origin()

◆ pointAt()

◆ setDirection()

◆ setOrigin() [1/2]

◆ setOrigin() [2/2]

◆ translate()

◆ translated()

◆ validateDirection()

Member Data Documentation

◆ _direction

◆ _origin
