Vertex type containing common mesh attributes. More...

#include <headers/utility/graphic/vertex.hpp>

Public Member Functions
	Vertex (void)
	Default constructor.

	Vertex (const Position< VectorComponent > &position, const math::Vector< VectorComponent, 3 > &normal, const math::Vector< VectorComponent, 2 > &textureCoordinates, const Color32Bit &color)
	Construct from all vertex attributes.

void	setPosition (const Position< VectorComponent > &position)
	Set vertex position.

Position< VectorComponent >	getPosition (void) const
	Get vertex position.

void	setNormal (const math::Vector< VectorComponent, 3 > &normal)
	Set vertex normal.

math::Vector< VectorComponent, 3 >	getNormal (void) const
	Get vertex normal.

void	setTextureCoordinates (const math::Vector< VectorComponent, 2 > &textureCoordinates)
	Set vertex texture coordinates.

math::Vector< VectorComponent, 2 >	getTextureCoordinates (void) const
	Get vertex texture coordinates.

void	setColor (const Color32Bit &color)
	Set vertex color.

Color32Bit	getColor (void) const
	Get vertex color.

Vertex &	setAttributes (const Position< VectorComponent > &position, const math::Vector< VectorComponent, 3 > &normal, const math::Vector< VectorComponent, 2 > &textureCoordinates, const Color32Bit &color)
	Set all vertex attributes at once.

bool	hasUnitNormal (VectorComponent epsilon=VectorComponent { 1e-5 }) const
	Check if the normal is approximately unit length.

bool	operator== (const Vertex &other) const
	Equality comparison.

bool	operator!= (const Vertex &other) const
	Inequality comparison.

Detailed Description

template<CanBeVectorComponent VectorComponent>
class utility::graphic::Vertex< VectorComponent >

Vertex type containing common mesh attributes.

Template Parameters

VectorComponent	Arithmetic type for vertex components (e.g., float, double).
ColorComponent	Arithmetic type for color components (e.g., float, uint8_t).

Definition at line 37 of file vertex.hpp.

Constructor & Destructor Documentation

◆ Vertex() [1/2]

template<CanBeVectorComponent VectorComponent>

utility::graphic::Vertex< VectorComponent >::Vertex ( void )

inline

Default constructor.

Initializes:

Position to (0, 0, 0)
Normal to (0, 0, 0)
Texture coordinates to (0, 0)
Color to white (1, 1, 1, 1)

Definition at line 57 of file vertex.hpp.

◆ Vertex() [2/2]

template<CanBeVectorComponent VectorComponent>

utility::graphic::Vertex< VectorComponent >::Vertex	(	const Position< VectorComponent > &	position,
		const math::Vector< VectorComponent, 3 > &	normal,
		const math::Vector< VectorComponent, 2 > &	textureCoordinates,
		const Color32Bit &	color
	)

inline

Construct from all vertex attributes.

Parameters

position	Vertex position.
normal	Vertex normal.
textureCoordinates	Vertex texture coordinates.
color	Vertex color in RGBA.

Definition at line 72 of file vertex.hpp.

Member Function Documentation

◆ getColor()

template<CanBeVectorComponent VectorComponent>

Color32Bit utility::graphic::Vertex< VectorComponent >::getColor ( void ) const

inline

Get vertex color.

Returns: Color in RGBA.

Definition at line 151 of file vertex.hpp.

◆ getNormal()

template<CanBeVectorComponent VectorComponent>

math::Vector< VectorComponent, 3 > utility::graphic::Vertex< VectorComponent >::getNormal ( void ) const

inline

Get vertex normal.

Returns: Normal vector.

Definition at line 114 of file vertex.hpp.

◆ getPosition()

template<CanBeVectorComponent VectorComponent>

Position< VectorComponent > utility::graphic::Vertex< VectorComponent >::getPosition ( void ) const

inline

Get vertex position.

Returns: Position vector.

Definition at line 96 of file vertex.hpp.

◆ getTextureCoordinates()

template<CanBeVectorComponent VectorComponent>

math::Vector< VectorComponent, 2 > utility::graphic::Vertex< VectorComponent >::getTextureCoordinates ( void ) const

inline

Get vertex texture coordinates.

Returns: Texture coordinates.

Definition at line 133 of file vertex.hpp.

◆ hasUnitNormal()

template<CanBeVectorComponent VectorComponent>

bool utility::graphic::Vertex< VectorComponent >::hasUnitNormal ( VectorComponent epsilon = VectorComponent { 1e-5 } ) const

inline

Check if the normal is approximately unit length.

Parameters

epsilon Absolute tolerance for squared-length comparison.

Returns: True when ||normal||^2 is close to 1.

Definition at line 182 of file vertex.hpp.

◆ operator!=()

template<CanBeVectorComponent VectorComponent>

bool utility::graphic::Vertex< VectorComponent >::operator!= ( const Vertex< VectorComponent > & other ) const

inline

Inequality comparison.

Parameters

other Vertex to compare with.

Returns: True when any attribute differs.

Definition at line 207 of file vertex.hpp.

◆ operator==()

template<CanBeVectorComponent VectorComponent>

bool utility::graphic::Vertex< VectorComponent >::operator== ( const Vertex< VectorComponent > & other ) const

inline

Equality comparison.

Parameters

other Vertex to compare with.

Returns: True when all attributes are equal.

Definition at line 195 of file vertex.hpp.

◆ setAttributes()

template<CanBeVectorComponent VectorComponent>

Vertex & utility::graphic::Vertex< VectorComponent >::setAttributes	(	const Position< VectorComponent > &	position,
		const math::Vector< VectorComponent, 3 > &	normal,
		const math::Vector< VectorComponent, 2 > &	textureCoordinates,
		const Color32Bit &	color
	)

inline

Set all vertex attributes at once.

Parameters

position	Vertex position.
normal	Vertex normal.
textureCoordinates	Vertex texture coordinates.
color	Vertex color.

Returns: Reference to this vertex for chaining.

Definition at line 164 of file vertex.hpp.

◆ setColor()

template<CanBeVectorComponent VectorComponent>

void utility::graphic::Vertex< VectorComponent >::setColor ( const Color32Bit & color )

inline

Set vertex color.

Parameters

color Color in RGBA.

Definition at line 142 of file vertex.hpp.

◆ setNormal()

template<CanBeVectorComponent VectorComponent>

void utility::graphic::Vertex< VectorComponent >::setNormal ( const math::Vector< VectorComponent, 3 > & normal )

inline

Set vertex normal.

Parameters

normal Normal vector.

Definition at line 105 of file vertex.hpp.

◆ setPosition()

template<CanBeVectorComponent VectorComponent>

void utility::graphic::Vertex< VectorComponent >::setPosition ( const Position< VectorComponent > & position )

inline

Set vertex position.

Parameters

position Position vector.

Definition at line 87 of file vertex.hpp.

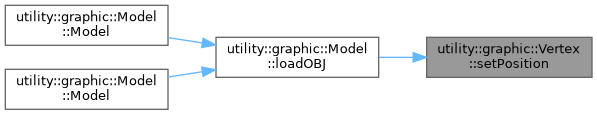

Here is the caller graph for this function:

◆ setTextureCoordinates()

template<CanBeVectorComponent VectorComponent>

void utility::graphic::Vertex< VectorComponent >::setTextureCoordinates ( const math::Vector< VectorComponent, 2 > & textureCoordinates )

inline

Set vertex texture coordinates.

Parameters

textureCoordinates Texture coordinates.

Definition at line 123 of file vertex.hpp.

The documentation for this class was generated from the following file:

headers/utility/graphic/vertex.hpp
