3D perspective view with floating-point components. More...

#include <headers/utility/graphic/view.hpp>

Public Member Functions
	View (void)
	Default constructor with common perspective defaults.

	View (Pose< ViewComponentType > pose, utility::graphic::FieldOfView< ViewComponentType > fov, math::Vector< ViewComponentType, 2 > viewportSize, ViewComponentType nearPlane, ViewComponentType farPlane)
	Construct view from explicit quaternion orientation.

	View (const View &other)=default
	Copy constructor.

	View (View &&other) noexcept=default
	Move constructor.

View &	operator= (const View &other)=default
	Copy assignment operator.

View &	operator= (View &&other) noexcept=default
	Move assignment operator.

	~View (void)=default
	Destructor.

void	setPose (const Pose< ViewComponentType > &pose)
	Set view world-space pose.

Pose< ViewComponentType >	getPose (void) const
	Get view world-space pose.

math::Vector< ViewComponentType, 3 >	getForward (void) const
	Get normalized forward direction.

math::Vector< ViewComponentType, 3 >	getUp (void) const
	Get normalized up direction.

void	setPerspective (ViewComponentType verticalFovRadians, ViewComponentType aspectRatio)
	Set perspective projection parameters.

ViewComponentType	getAspectRatio () const
	Get aspect ratio (width/height).

void	setFieldOfView (const FieldOfView< ViewComponentType > &fieldOfView)
	Set per-direction field-of-view values.

FieldOfView< ViewComponentType >	getFieldOfView (void) const
	Get field-of-view values.

math::Vector< ViewComponentType, 3 >	getRight (void) const
	Compute view right direction from orientation basis.

void	setClippingPlanes (ViewComponentType nearDistance, ViewComponentType farDistance)
	Set near and far clipping plane distances.

ViewComponentType	getNearPlane () const noexcept
	Get near clipping plane distance.

ViewComponentType	getFarPlane () const noexcept
	Get far clipping plane distance.

void	move (const math::Vector< ViewComponentType, 3 > &offset)
	Translate view position by an offset.

View	moved (const math::Vector< ViewComponentType, 3 > &offset) const
	Return translated view copy.

Ray< ViewComponentType >	viewRay (ViewComponentType ndcX, ViewComponentType ndcY) const
	Create a world-space ray from normalized device coordinates.

Ray< ViewComponentType >	viewPointToRay (const math::Vector< ViewComponentType, 2 > &point) const
	Create a world-space ray from viewport pixel coordinates.

ViewComponentType	getVerticalFovRadians () const noexcept
	Get total vertical field-of-view in radians.

ViewComponentType	getHorizontalFovRadians () const noexcept
	Get total horizontal field-of-view in radians.

bool	isFieldOfViewSymmetric (ViewComponentType epsilon=ViewComponentType { 1e-6 }) const noexcept
	Check whether current field-of-view is symmetric.

Ray< ViewComponentType >	centerRay (void) const
	Create a ray going through the center of the viewport.

bool	operator== (const View &other) const noexcept
	Equality comparison.

bool	operator!= (const View &other) const noexcept
	Inequality comparison.

void	setViewportSize (const math::Vector< ViewComponentType, 2 > &viewportSize)
	Set viewport size in pixels.

math::Vector< ViewComponentType, 2 >	getViewportSize (void) const
	Get viewport size in pixels.

utility::math::Matrix< ViewComponentType, 4, 4 >	toViewMatrix (void) const
	Convert view to a GLM-compatible 4x4 view matrix.

utility::math::Matrix< ViewComponentType, 4, 4 >	getProjectionMatrix () const
	Build a perspective projection matrix from per-side field of view angles.

void	setFlipY (bool flip) noexcept
	Set whether the projection matrix inverts the Y axis.

bool	isFlipY (void) const noexcept
	Get whether the projection matrix inverts the Y axis.

Detailed Description

template<CanBeViewComponent ViewComponentType>
class utility::graphic::View< ViewComponentType >

3D perspective view with floating-point components.

Template Parameters

ViewComponentType Floating-point type for view parameters and vectors.

Definition at line 54 of file view.hpp.

Constructor & Destructor Documentation

◆ View() [1/4]

template<CanBeViewComponent ViewComponentType>

utility::graphic::View< ViewComponentType >::View ( void )

inline

Default constructor with common perspective defaults.

Definition at line 175 of file view.hpp.

◆ View() [2/4]

template<CanBeViewComponent ViewComponentType>

utility::graphic::View< ViewComponentType >::View	(	Pose< ViewComponentType >	pose,
		utility::graphic::FieldOfView< ViewComponentType >	fov,
		math::Vector< ViewComponentType, 2 >	viewportSize,
		ViewComponentType	nearPlane,
		ViewComponentType	farPlane
	)

inline

Construct view from explicit quaternion orientation.

Parameters

pose	View world-space position and orientation.
fov	View field-of-view parameters.
viewportSize	Viewport size in pixels (width, height).
nearPlane	Near clipping plane distance.
farPlane	Far clipping plane distance.

Exceptions

std::invalid_argument if perspective values or quaternion are invalid.

Definition at line 194 of file view.hpp.

◆ View() [3/4]

template<CanBeViewComponent ViewComponentType>

utility::graphic::View< ViewComponentType >::View ( const View< ViewComponentType > & other )

default

Copy constructor.

Parameters

other View instance to copy from.

◆ View() [4/4]

template<CanBeViewComponent ViewComponentType>

utility::graphic::View< ViewComponentType >::View ( View< ViewComponentType > && other )

defaultnoexcept

Move constructor.

Parameters

other View instance to move from.

Member Function Documentation

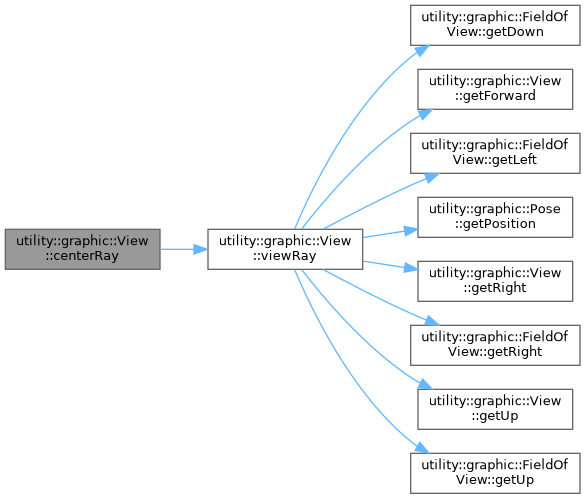

◆ centerRay()

template<CanBeViewComponent ViewComponentType>

Ray< ViewComponentType > utility::graphic::View< ViewComponentType >::centerRay ( void ) const

inline

Create a ray going through the center of the viewport.

Returns: Center view ray.

Definition at line 492 of file view.hpp.

Here is the call graph for this function:

◆ getAspectRatio()

template<CanBeViewComponent ViewComponentType>

ViewComponentType utility::graphic::View< ViewComponentType >::getAspectRatio ( ) const

inline

Get aspect ratio (width/height).

Returns: Aspect ratio.

Definition at line 298 of file view.hpp.

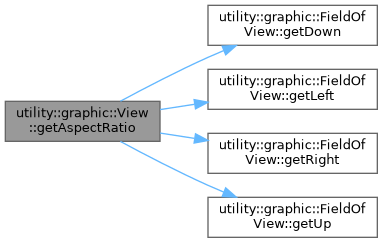

Here is the call graph for this function:

◆ getFarPlane()

template<CanBeViewComponent ViewComponentType>

ViewComponentType utility::graphic::View< ViewComponentType >::getFarPlane ( ) const

inlinenoexcept

Get far clipping plane distance.

Returns: Far clipping plane distance.

Definition at line 374 of file view.hpp.

◆ getFieldOfView()

template<CanBeViewComponent ViewComponentType>

FieldOfView< ViewComponentType > utility::graphic::View< ViewComponentType >::getFieldOfView ( void ) const

inline

Get field-of-view values.

Returns: Field-of-view object.

Definition at line 324 of file view.hpp.

◆ getForward()

template<CanBeViewComponent ViewComponentType>

math::Vector< ViewComponentType, 3 > utility::graphic::View< ViewComponentType >::getForward ( void ) const

inline

Get normalized forward direction.

Returns: Forward direction vector.

Definition at line 259 of file view.hpp.

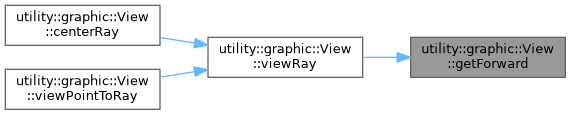

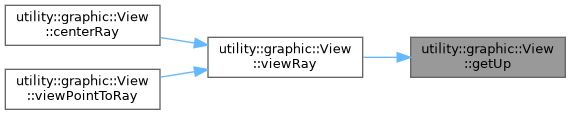

Here is the caller graph for this function:

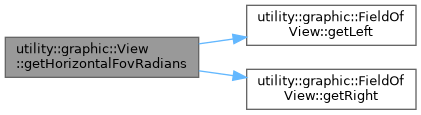

◆ getHorizontalFovRadians()

template<CanBeViewComponent ViewComponentType>

ViewComponentType utility::graphic::View< ViewComponentType >::getHorizontalFovRadians ( ) const

inlinenoexcept

Get total horizontal field-of-view in radians.

Returns: Horizontal FOV in radians.

Definition at line 472 of file view.hpp.

Here is the call graph for this function:

◆ getNearPlane()

template<CanBeViewComponent ViewComponentType>

ViewComponentType utility::graphic::View< ViewComponentType >::getNearPlane ( ) const

inlinenoexcept

Get near clipping plane distance.

Returns: Near clipping plane distance.

Definition at line 365 of file view.hpp.

◆ getPose()

template<CanBeViewComponent ViewComponentType>

Pose< ViewComponentType > utility::graphic::View< ViewComponentType >::getPose ( void ) const

inline

Get view world-space pose.

Returns: Pose object containing position and orientation.

Definition at line 250 of file view.hpp.

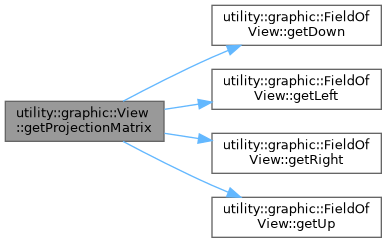

◆ getProjectionMatrix()

template<CanBeViewComponent ViewComponentType>

utility::math::Matrix< ViewComponentType, 4, 4 > utility::graphic::View< ViewComponentType >::getProjectionMatrix ( ) const

inline

Build a perspective projection matrix from per-side field of view angles.

Returns: 4x4 projection matrix in column-major order.

Exceptions

std::invalid_argument if clipping planes are invalid or FOV produces a degenerate frustum.

Definition at line 590 of file view.hpp.

Here is the call graph for this function:

◆ getRight()

template<CanBeViewComponent ViewComponentType>

math::Vector< ViewComponentType, 3 > utility::graphic::View< ViewComponentType >::getRight ( void ) const

inline

Compute view right direction from orientation basis.

Returns: Normalized right direction vector.

Definition at line 333 of file view.hpp.

Here is the caller graph for this function:

◆ getUp()

template<CanBeViewComponent ViewComponentType>

math::Vector< ViewComponentType, 3 > utility::graphic::View< ViewComponentType >::getUp ( void ) const

inline

Get normalized up direction.

Returns: Up direction vector.

Definition at line 271 of file view.hpp.

Here is the caller graph for this function:

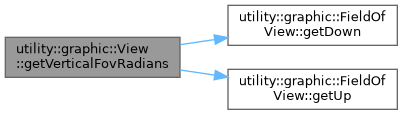

◆ getVerticalFovRadians()

template<CanBeViewComponent ViewComponentType>

ViewComponentType utility::graphic::View< ViewComponentType >::getVerticalFovRadians ( ) const

inlinenoexcept

Get total vertical field-of-view in radians.

Returns: Vertical FOV in radians.

Definition at line 463 of file view.hpp.

Here is the call graph for this function:

◆ getViewportSize()

template<CanBeViewComponent ViewComponentType>

math::Vector< ViewComponentType, 2 > utility::graphic::View< ViewComponentType >::getViewportSize ( void ) const

inline

Get viewport size in pixels.

Returns: Viewport size (width, height).

Definition at line 535 of file view.hpp.

◆ isFieldOfViewSymmetric()

template<CanBeViewComponent ViewComponentType>

bool utility::graphic::View< ViewComponentType >::isFieldOfViewSymmetric ( ViewComponentType epsilon = ViewComponentType { 1e-6 } ) const

inlinenoexcept

Check whether current field-of-view is symmetric.

Parameters

epsilon Absolute tolerance.

Returns: True when up/down and left/right are approximately equal.

Definition at line 481 of file view.hpp.

◆ isFlipY()

template<CanBeViewComponent ViewComponentType>

bool utility::graphic::View< ViewComponentType >::isFlipY ( void ) const

inlinenoexcept

Get whether the projection matrix inverts the Y axis.

Returns: True if Y is inverted (Vulkan-style NDC).

Definition at line 649 of file view.hpp.

◆ move()

template<CanBeViewComponent ViewComponentType>

void utility::graphic::View< ViewComponentType >::move ( const math::Vector< ViewComponentType, 3 > & offset )

inline

Translate view position by an offset.

Parameters

offset Translation vector.

Definition at line 383 of file view.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ moved()

template<CanBeViewComponent ViewComponentType>

View utility::graphic::View< ViewComponentType >::moved ( const math::Vector< ViewComponentType, 3 > & offset ) const

inline

Return translated view copy.

Parameters

offset Translation vector.

Returns: View copy with updated position.

Definition at line 393 of file view.hpp.

Here is the call graph for this function:

◆ operator!=()

template<CanBeViewComponent ViewComponentType>

bool utility::graphic::View< ViewComponentType >::operator!= ( const View< ViewComponentType > & other ) const

inlinenoexcept

Inequality comparison.

Parameters

other View to compare with.

Returns: True when pose or field-of-view differ.

Definition at line 516 of file view.hpp.

◆ operator=() [1/2]

template<CanBeViewComponent ViewComponentType>

View & utility::graphic::View< ViewComponentType >::operator= ( const View< ViewComponentType > & other )

default

Copy assignment operator.

Parameters

other View instance to copy from.

Returns: Reference to this view.

◆ operator=() [2/2]

template<CanBeViewComponent ViewComponentType>

View & utility::graphic::View< ViewComponentType >::operator= ( View< ViewComponentType > && other )

defaultnoexcept

Move assignment operator.

Parameters

other View instance to move from.

Returns: Reference to this view.

◆ operator==()

template<CanBeViewComponent ViewComponentType>

bool utility::graphic::View< ViewComponentType >::operator== ( const View< ViewComponentType > & other ) const

inlinenoexcept

Equality comparison.

Parameters

other View to compare with.

Returns: True when pose and field-of-view are equal.

Definition at line 502 of file view.hpp.

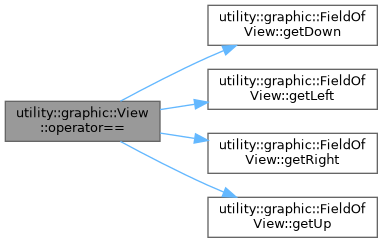

Here is the call graph for this function:

◆ setClippingPlanes()

template<CanBeViewComponent ViewComponentType>

void utility::graphic::View< ViewComponentType >::setClippingPlanes	(	ViewComponentType	nearDistance,
		ViewComponentType	farDistance
	)

inline

Set near and far clipping plane distances.

Parameters

nearDistance	Near clipping plane distance.
farDistance	Far clipping plane distance.

Definition at line 347 of file view.hpp.

◆ setFieldOfView()

template<CanBeViewComponent ViewComponentType>

void utility::graphic::View< ViewComponentType >::setFieldOfView ( const FieldOfView< ViewComponentType > & fieldOfView )

inline

Set per-direction field-of-view values.

Parameters

fieldOfView Field-of-view values.

Definition at line 315 of file view.hpp.

◆ setFlipY()

template<CanBeViewComponent ViewComponentType>

void utility::graphic::View< ViewComponentType >::setFlipY ( bool flip )

inlinenoexcept

Set whether the projection matrix inverts the Y axis.

Vulkan uses a Y-down NDC, so Y is inverted by default. Graphics APIs with a Y-up NDC (OpenGL, Metal, DirectX) should disable this.

Parameters

flip	True to invert Y (Vulkan-style), false to keep Y-up.

Definition at line 640 of file view.hpp.

◆ setPerspective()

template<CanBeViewComponent ViewComponentType>

void utility::graphic::View< ViewComponentType >::setPerspective	(	ViewComponentType	verticalFovRadians,
		ViewComponentType	aspectRatio
	)

inline

Set perspective projection parameters.

Parameters

verticalFovRadians	Total vertical field-of-view in radians.
aspectRatio	Aspect ratio (width / height).

Exceptions

std::invalid_argument if any perspective parameter is invalid.

Definition at line 286 of file view.hpp.

◆ setPose()

template<CanBeViewComponent ViewComponentType>

void utility::graphic::View< ViewComponentType >::setPose ( const Pose< ViewComponentType > & pose )

inline

Set view world-space pose.

Parameters

pose	New view pose (position and orientation).

Definition at line 241 of file view.hpp.

◆ setViewportSize()

template<CanBeViewComponent ViewComponentType>

void utility::graphic::View< ViewComponentType >::setViewportSize ( const math::Vector< ViewComponentType, 2 > & viewportSize )

inline

Set viewport size in pixels.

Parameters

viewportSize Viewport size (width, height).

Definition at line 525 of file view.hpp.

◆ toViewMatrix()

template<CanBeViewComponent ViewComponentType>

utility::math::Matrix< ViewComponentType, 4, 4 > utility::graphic::View< ViewComponentType >::toViewMatrix ( void ) const

inline

Convert view to a GLM-compatible 4x4 view matrix.

Returns: 4x4 view matrix in column-major order.

Definition at line 544 of file view.hpp.

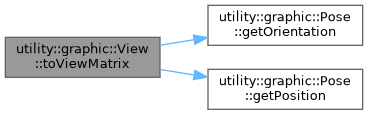

Here is the call graph for this function:

◆ viewPointToRay()

template<CanBeViewComponent ViewComponentType>

Ray< ViewComponentType > utility::graphic::View< ViewComponentType >::viewPointToRay ( const math::Vector< ViewComponentType, 2 > & point ) const

inline

Create a world-space ray from viewport pixel coordinates.

Parameters

point Viewport coordinate in pixels (origin at top-left).

Returns: Ray originating at view position toward projected direction.

Exceptions

std::out_of_range if point is outside of viewport bounds.

Definition at line 437 of file view.hpp.

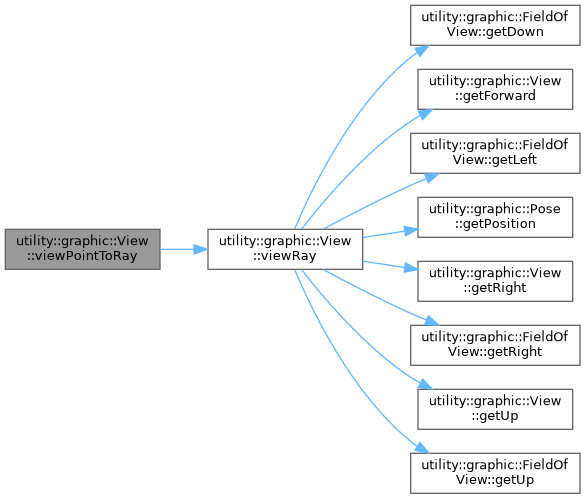

Here is the call graph for this function:

◆ viewRay()

template<CanBeViewComponent ViewComponentType>

Ray< ViewComponentType > utility::graphic::View< ViewComponentType >::viewRay	(	ViewComponentType	ndcX,
		ViewComponentType	ndcY
	)		const

inline

Create a world-space ray from normalized device coordinates.

Parameters

ndcX	Horizontal coordinate in range [-1, 1].
ndcY	Vertical coordinate in range [-1, 1].

Returns: Ray originating at view position toward projected direction.

Definition at line 406 of file view.hpp.

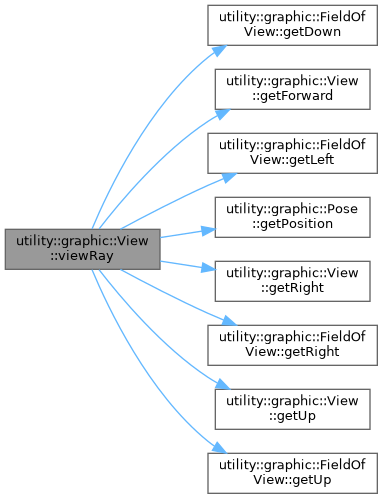

Here is the call graph for this function:

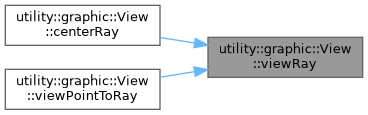

Here is the caller graph for this function:

The documentation for this class was generated from the following file:

headers/utility/graphic/view.hpp

Public Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ View() [1/4]

◆ View() [2/4]

◆ View() [3/4]

◆ View() [4/4]

Member Function Documentation

◆ centerRay()

◆ getAspectRatio()

◆ getFarPlane()

◆ getFieldOfView()

◆ getForward()

◆ getHorizontalFovRadians()

◆ getNearPlane()

◆ getPose()

◆ getProjectionMatrix()

◆ getRight()

◆ getUp()

◆ getVerticalFovRadians()

◆ getViewportSize()

◆ isFieldOfViewSymmetric()

◆ isFlipY()

◆ move()

◆ moved()

◆ operator!=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ setClippingPlanes()

◆ setFieldOfView()

◆ setFlipY()

◆ setPerspective()

◆ setPose()

◆ setViewportSize()

◆ toViewMatrix()

◆ viewPointToRay()

◆ viewRay()
